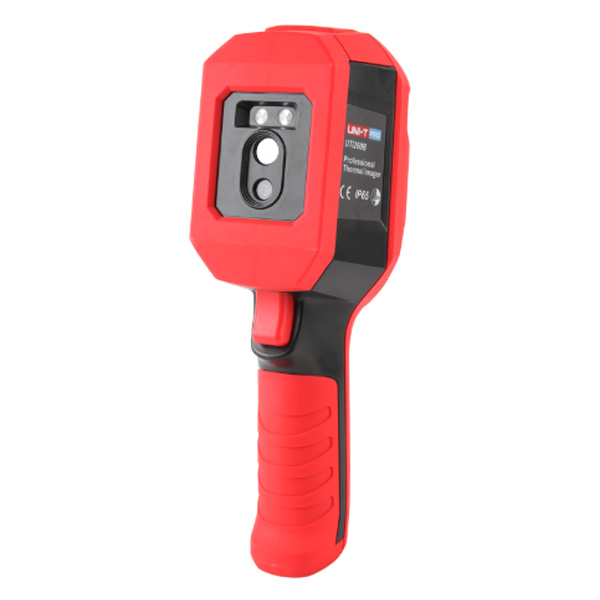

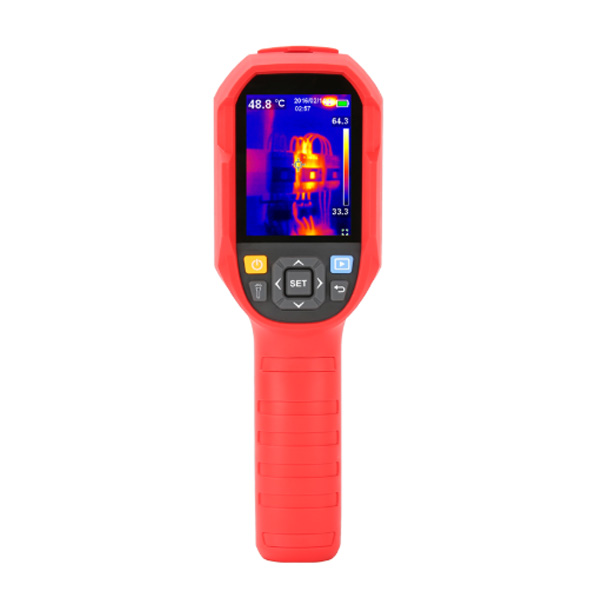

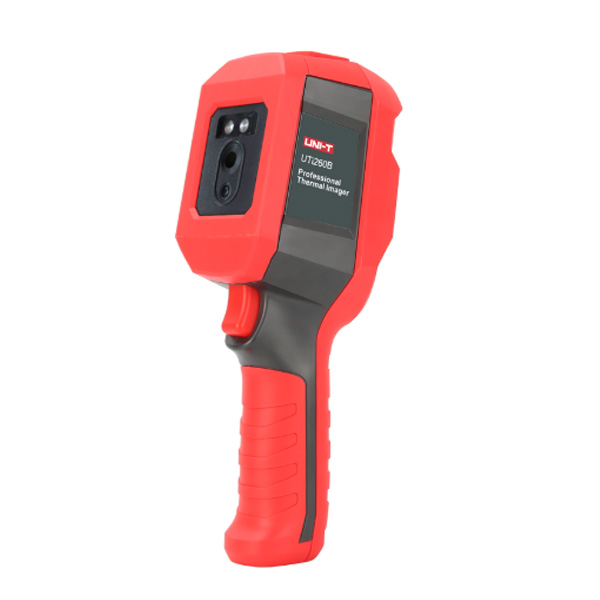

UNI-T UTi260B Heavy-Duty Thermal Camera

The UNI-T UTi260B is a professional heavy-duty thermal imaging camera designed for accurate temperature measurement and reliable fault detection in demanding industrial environments. With a 256 × 192 infrared sensor, wide temperature range, and rugged IP65-rated housing, the UTi260B is ideal for electrical inspection, mechanical maintenance, HVAC diagnostics, and building analysis.

Key Features

• 256 × 192 infrared resolution for clear, detailed thermal images
• Wide temperature measurement range: –20 °C to 550 °C
• High thermal sensitivity (NETD ≤ 60 mK) for detecting subtle temperature differences
• Focus-free lens for fast and easy inspections
• Multiple image modes: Thermal, Visual Image, Fusion, and Picture-in-Picture (PIP)
• 7 color palettes to enhance thermal contrast
• On-screen analyzer with 3 measurement points
• High/Low temperature alarm with on-screen icon and LED flashlight indication
• Built-in 640 × 480 digital camera for visual reference images
• Rugged IP65 protection against dust and water splashes
• 2-meter drop-proof heavy-duty design
• PC software support for image analysis and reporting
• Long-lasting rechargeable Li-ion battery

Technical Specifications

Thermal Imaging

• IR Resolution: 256 × 192 pixels
• Display: 2.8″ TFT LCD (320 × 240)
• Field of View (FOV): 56° × 42°
• Thermal Sensitivity (NETD): ≤ 60 mK
• Spatial Resolution (IFOV): 3.8 mrad
• Frame Rate: ≤ 25 Hz
• Spectral Range: 8 – 14 µm
• Focus: Focus-free

Temperature Measurement

• Measurement Range: –20 °C to 550 °C
• Accuracy: ±2 °C or ±2 % (whichever is greater)
• Emissivity: Adjustable 0.01 – 1.00 (default 0.95)

Functions

• Color Palettes: 7
  (White Hot, Black Hot, Red Hot, Ironbow, Lava, Rainbow, Rainbow HC)
• Image Modes: Thermal, Visual Image, Fusion, PIP
• On-Screen Analyzer: 3 points
• Digital Camera Resolution: 640 × 480
• High/Low Temperature Alarm: Visual icon & LED flashlight
• PC Software Analysis: Supported

General Characteristics

• Battery: Built-in Li-ion battery (3.6 V, 5000 mAh)
• Battery Operation Time: ≥ 6 hours
• USB Interface: Type-C
• Protection Rating: IP65
• Drop Resistance: 2 m
• Storage: microSD card up to 32 GB
• Image / Video Format: BMP
• Certifications: CE, FCC, RoHS
• Net Weight: 490 g
• Product Size: 236 × 75.5 × 86 mm

Packing Details

Standard Accessories Included:

• USB Type-C cable
• English user manual
• Documents download & operation guide card

Typical Applications

• Electrical panels and power distribution inspection
• Industrial machinery and motor diagnostics
• Preventive and predictive maintenance
• HVAC system inspection
• Building insulation and energy audits
• Solar panel inspection
• Automotive and mechanical thermal analysis

The UNI-T UTi260B Heavy-Duty Thermal Camera combines high thermal performance, rugged construction, and professional analysis features, making it a reliable solution for technicians and engineers working in challenging industrial environments.
