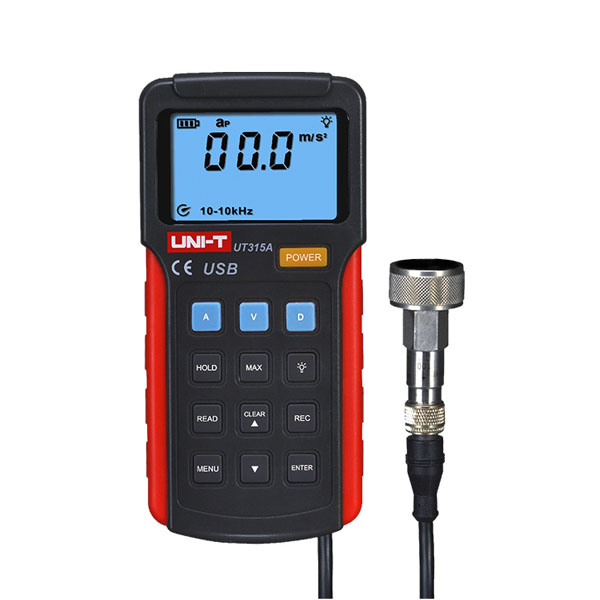

UT315A handheld vibration tester can measure displacement, velocity, and acceleration of rotating and reciprocating machinery. Technicians can use these to monitor equipment status and ensure normal operation.
Features
- Highly accurate and precise
- Measures acceleration, velocity, displacement
- Can select different vibration frequency characteristics
- Auto power off, low battery indication
- Data hold
| Specifications | UT315A |
| Acceleration (O-P) | 0~199.9m/s² |
| Frequency response: 10Hz-10kHz | |
| Accuracy: ±(5%+0.2m/s²) | |
| Velocity (RMS) | 0~19.99cm/s |
| Frequency response: 10Hz~1kHz | |
| Accuracy: ±(5%+0.02cm/s) | |
| Displacement (P-P) | 1~1.999mm |
| Frequency response: 10Hz~500Hz | |
| Accuracy: ±(5%+0.002mm) | |
| Features | |
| Data hold | √ |
| Low battery indication | √ |
| Auto power off | √ |
| Battery life | Continuous measuring time > 8 hours |
| Display count | 2000 |
| General Characteristics | |
| Power | 9V battery (6F22 ) |
| Product Color | Red and grey |
| Product net weight | UT315A: 395g |
| Product size | UT315A: 166mm x 80mm x 30mm |
| Standard accessories | Battery, tools toolbox |
| Standard individual packing | Gift box, English manual |
