LHT00SU1 Virtual Oscilloscope Logic Analyzer I2C SPI CAN UART

https://www.ram-e-shop.com/web/image/product.template/7531/image_1920?unique=81556e7

2,250.00 EGP 2250.0 EGP 2,250.00 EGP 2,950.00 EGP

2,250.00 EGP 2,950.00 EGP

Not Available For Sale

This combination does not exist.

 Pick up from RAM Store
 Shipping: 2-3 Business Days


Internal Reference: AVO.LHT001SU1

Function:

  • Dual input oscilloscope (single, 16Msps, 3MHz bandwidth)
  • 8-channel logic analyzer
  • Data Logger
  • Dual channel voltmeter
  • Mixed signal oscilloscopes and logic analyzer
  • Frequency meter
  • Remote controller
  • PWM controller
  • Frequency generator
  • I2C controller
  • Pulse / edge counter
  • 8 digital channel + 1 analog channel logic analyzer, support for multiple protocols

Analog parameters:

  • Number of input channels: 2 channel
  • Sampling channel: 1 channel
  • The maximum sampling frequency: 16MHz
  • The maximum analog bandwidth: 3MHz
  • Input voltage range: -10V to + 10V
  • Sensitivity: 78mV
  • Maximum vertical resolution: 256 level

Digital parameters:

  • Number of channels: 8
  • Input voltage: 0V-5.3V
  • Input Low level: <0.8V
  • Input high level: >1.4V
  • Supported protocols: SPI, IIC, UART, SMBus, I2S, CAN, Parallel, Custom, Search, Async, 1-Wite, PS / 2

The communication interface parameters: USB parameters: USB2.0 high-speed 480Mbps

System requirements: Supported operating systems Win2000 / XP / Vista / WIN7 (32bit) Celeron 4 2.0G or Pentium 4 1.8G higher processor Need USB2.0 high-speed interface, does not support full speed USB2.0 or USB1.1 Memory Requirements 128M or more Need 2G or more hard disk You need to install Framework 3.5 SP1

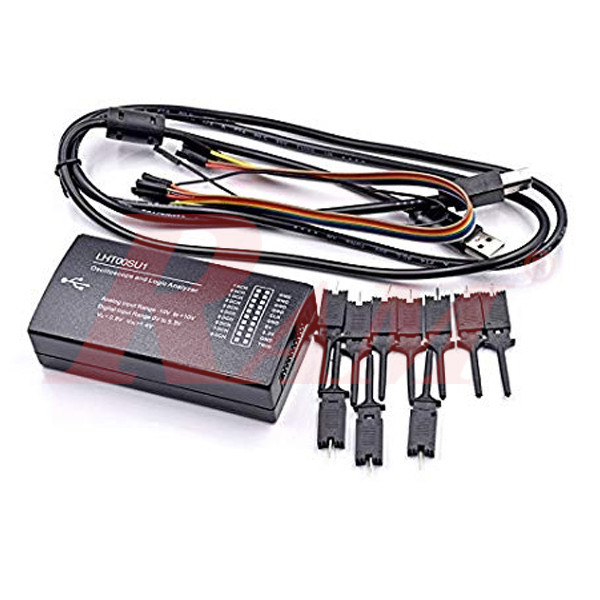

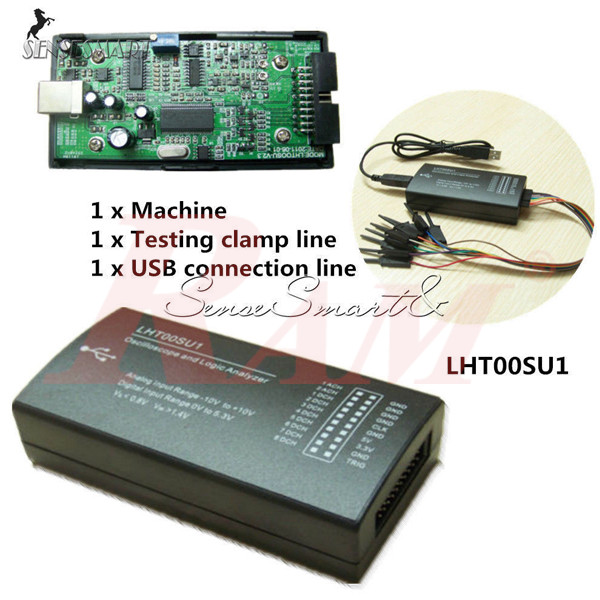

Package List:

  • 1 x Logic Analyzer
  • 1 x Test clamp (10-pin, 30cm length)
  • 1 x USB cable (150cm length)
  • 10 x Test clips

Download
