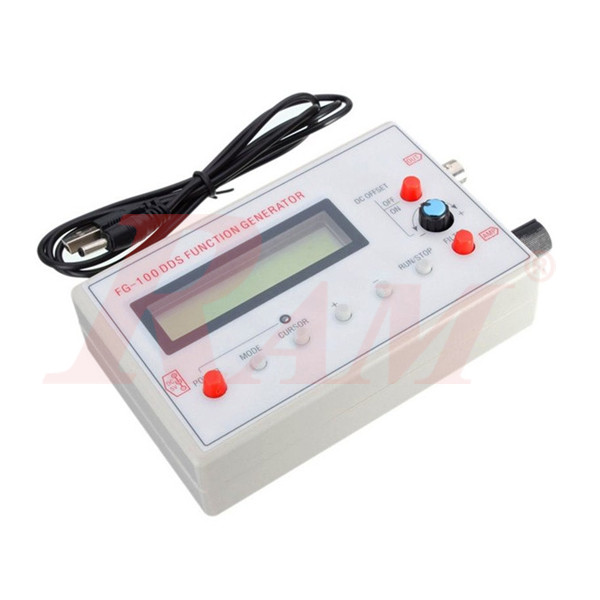

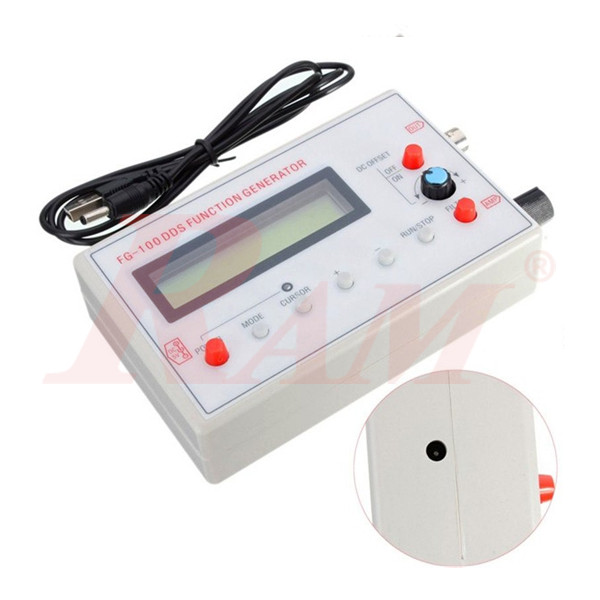

FG-100 DDS Signal Generator

https://ram-electronics.odoo.com/web/image/product.template/7530/image_1920?unique=03304d2

Function Generator

1,750.00 EGP 1750.0 EGP 1,750.00 EGP

1,750.00 EGP

Not Available For Sale

This combination does not exist.

 Pick up from RAM Store
 Shipping: 2-3 Business Days


Internal Reference: AVO.FG100

Description:

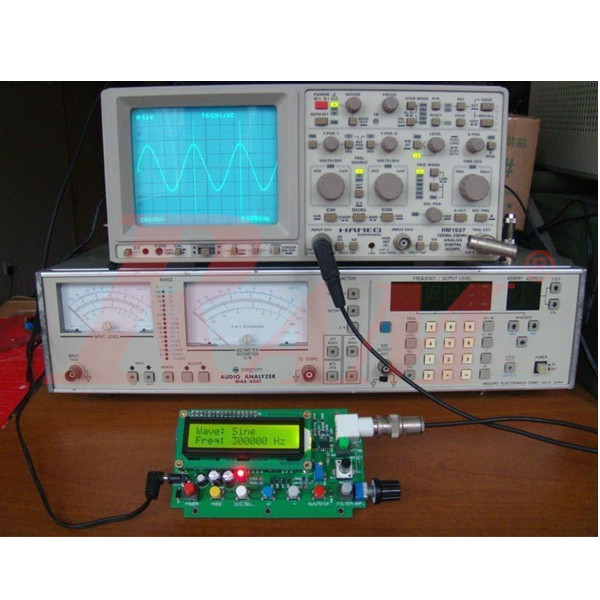

The FG-100 DDS Signal Generator is a versatile electronic device used in various applications such as testing, calibration, and troubleshooting of electronic circuits and systems. It utilizes Direct Digital Synthesis (DDS) technology to generate accurate and stable signals with precise frequency and amplitude control. The FG-100 offers a wide frequency range, high signal purity, and low distortion, making it ideal for use in research labs, educational institutions, and production environments. Its user-friendly interface and compact design make it easy to operate and suitable for both experienced professionals and beginners in the field of electronics.

Frequency range:

  1. Sine Wave 1Hz-500kHz
  2. Other waveforms 1Hz-20kHz

Features:

  • Resolution: 1Hz.
  • Output Waveforms: Sine, Square, Triangle, Sawtooth, Pulse, Noise
  • Sine Wave Distortion: 1kHz or less <1%, 1kHz and above <0.5%.
  • Output Amplitude: 0 to 10Vpp (adjustable)
  • Output Impedance: 50 ohms.
  • Frequency Accuracy: ±20ppm
  • Frequency Stability: ±1ppm
  • Harmonic Distortion: -40dBc
  • Amplitude Flatness: ±0.5dB
  • DC offset: maximum ± 10V, there are off functions.
  • LCD display for frequency and amplitude
  • Modulation: AM, FM, PM, FSK, PWM
  • Power Supply: DC3.5~10V

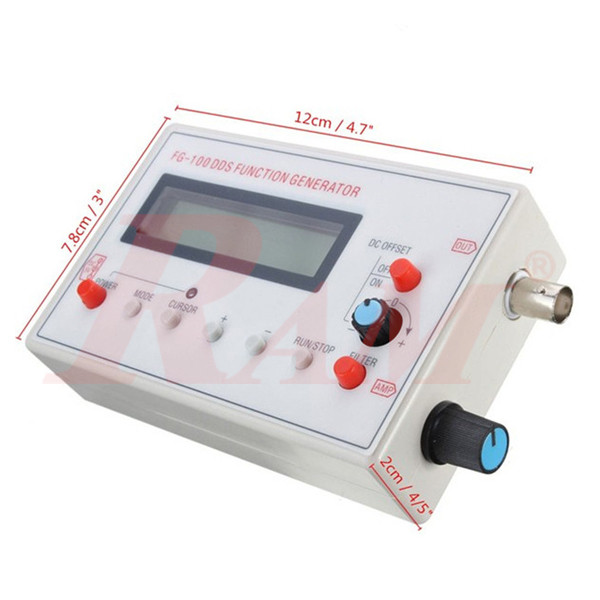

  • Size: 125x80x32mm
  • Package including : 1 x FG-100 DDS Signal Generator
