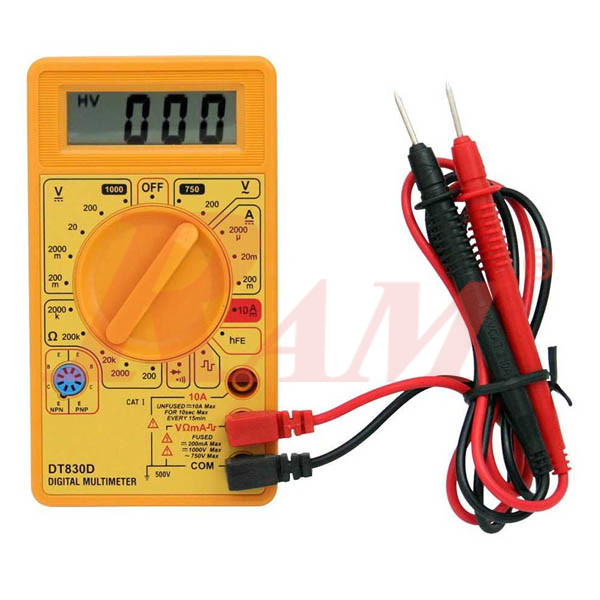

DT-830D Digital Multimeter

https://www.ram-e-shop.com/web/image/product.template/8948/image_1920?unique=12829e9

175.00 EGP 175.0 EGP 175.00 EGP

175.00 EGP

Not Available For Sale

This combination does not exist.

 Pick up from RAM Store
 Shipping: 2-3 Business Days


Internal Reference: AVO.DT830D

The DT-830D Digital Multimeter is a versatile and affordable tool used for measuring various electrical parameters such as voltage, current, and resistance. It typically features a digital display for easy reading, as well as functions like continuity testing and diode testing. The DT-830D is commonly used by hobbyists, DIY enthusiasts, and professionals for troubleshooting electrical circuits and components.

The electrical specifications for the DT-830D Digital Multimeter are as follows:

1. DC Voltage:

  • Range: 200mV/2V/20V/200V/1000V
  • Accuracy: ±(0.5%+2)

2. AC Voltage:

  • Range: 200V/750V
  • Accuracy: ±(1.2%+10)

3. DC Current:

  • Range: 200μA/2mA/20mA/200mA/10A
  • Accuracy: ±(1.0%+2)

4. Resistance:

  • Range: 200Ω/2kΩ/20kΩ/200kΩ/2MΩ
  • Accuracy: ±(0.8%+2)

5. Diode Test:

  • Test Current: Approx. 1mA
  • Test Voltage: Approx. 3V

6. Continuity Test (Buzzer):

  • Threshold: Approx. 50Ω

7. Power:

  • 9V Battery (6F22 or equivalent)

8. Display:

  • 3 1/2-digit LCD display with a maximum reading of 1999

9. Transistor (hFE):

  • NPN/PNP

10. Square wave output:

  • Approx 3Vpp

11. Operating Temperature:

  • 0°C to 40°C
