Arduino Shield - LCD 2x16 Keypad Shield

https://ram-electronics.odoo.com/web/image/product.template/6731/image_1920?unique=9b97f50

150.00 EGP 150.0 EGP 150.00 EGP

150.00 EGP

Not Available For Sale

This combination does not exist.

 Pick up from RAM Store
 Shipping: 2-3 Business Days


Internal Reference: ARDUINO.SH.LCD1602.KEYPAD

Description:

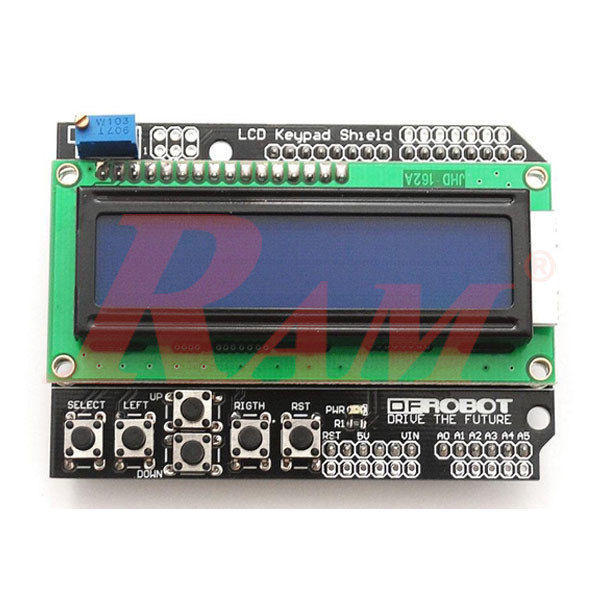

This is a very popular LCD Keypad shield for Arduino boards. It includes a 2x16 LCD display and 6 momentary push buttons. Pins 4, 5, 6, 7, 8, 9 and 10 are used to interface with the LCD. Analog Pin 0 is used to read the push buttons. The LCD shield supports contrast adjustment and backlit on/off functions. It also expands analog pins for easy analog sensor reading and display.

The LCD Keypad shield is developed for Arduino-compatible boards, to provide a user-friendly interface that allows users to go through the menu, make selections, etc. It consists of a 1602 white character blue backlight LCD. The keypad consists of 5 keys — select, up, right, down, and left. To save the digital IO pins, the keypad interface uses only one ADC channel. The key value is read through a 5-stage voltage divider.

Specification

  • Operating Voltage:5V
  • 5 Push buttons to supply a custom menu control panel
  • RST button for resetting Arduino program
  • Integrate a potentiometer for adjusting the backlight
  • Expanded available I/O pins
  • Expanded Analog Pinout with standard DFRobot configuration for fast sensor extension
  • Dimension: 80 x 58 mm
