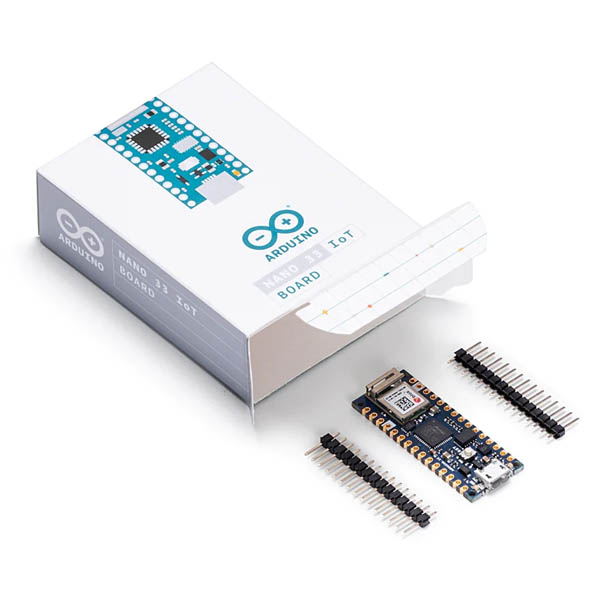

ARDUINO NANO 33 IoT

https://www.ram-e-shop.com/web/image/product.template/8707/image_1920?unique=263afec

ABX00027

1,250.00 EGP 1250.0 EGP 1,250.00 EGP

1,250.00 EGP

Not Available For Sale

This combination does not exist.

 Pick up from RAM Store
 Shipping: 2-3 Business Days


Internal Reference: ARDUINO.ORG.NANO.33.IOT

This Board is 100% original Designed And Assembled In ITALY

Overview

The Arduino Nano 33 IoT is the easiest and cheapest point of entry to enhance existing devices (and creating new ones) to be part of the IoT and designing pico-network applications. Whether you are looking at building a sensor network connected to your office or home router, or if you want to create a Bluetooth® Low Energy device sending data to a cellphone, the Nano 33 IoT is your one-stop-solution for many of the basic IoT application scenarios.

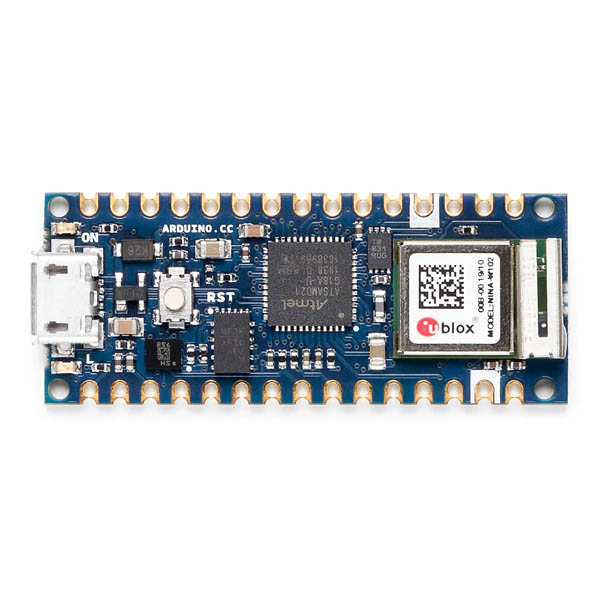

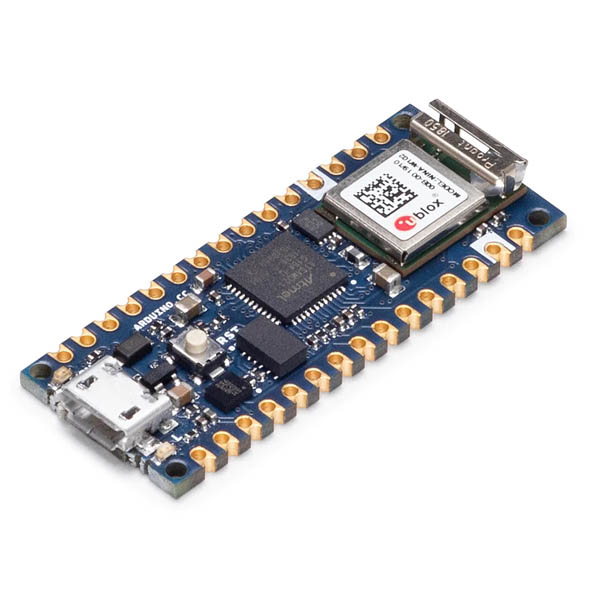

The board's main processor is a low power Arm® Cortex®-M0 32-bit SAMD21. The WiFi and Bluetooth® connectivity is performed with a module from u-blox, the NINA-W10, a low power chipset operating in the 2.4GHz range. On top of those, secure communication is ensured through the Microchip® ECC608 crypto chip. Besides that, you can find a 6 axis IMU, what makes this board perfect for simple vibration alarm systems, pedometers, relative positioning of robots, etc.

WiFi and Arduino IoT Cloud

At Arduino, we have made connecting to a WiFi network as easy as getting an LED to blink. You can get your board to connect to any kind of existing WiFi network, or use it to create your own Arduino Access Point. The specific set of examples we provide for the Nano 33 IoT can be consulted at the WiFiNINA library reference page.

It is also possible to connect your board to different Cloud services, Arduino's own among others. Here some examples on how to get the Arduino boards to connect to:

  • Arduino's own IoT Cloud: Arduino's IoT Cloud is a simple and fast way to ensure secure communication for all of your connected Things. Check it out here
  • Blynk: a simple project from our community connecting to Blynk to operate your board from a phone with little code
  • IFTTT: see an in-depth case of building a smart plug connected to IFTTT
  • AWS IoT Core: we made this example on how to connect to Amazon Web Services
  • Azure: visit this github repository explaining how to connect a temperature sensor to Azure's Cloud
  • Firebase: you want to connect to Google's Firebase, this Arduino library will show you how

Note: while most of the above-shown examples are running on the MKR WiFi 1010, both boards have the same processor and wireless chipset, which means it will be possible to replicate them with the Nano 33 IoT.

Bluetooth® and Bluetooth® Low Energy

The communications chipset on the Nano 33 IoT can be both a Bluetooth® and Bluetooth® Low Energy client and host device. Something pretty unique in the world of microcontroller platforms. If you want to see how easy it is to create a Bluetooth® central or a peripheral device, explore the examples at our ArduinoBLE library.

Tech specs

The Arduino Nano 33 IoT is based on the SAMD21 microcontroller.

MicrocontrollerSAMD21 Cortex®-M0+ 32bit low power ARM MCU (datasheet)
Radio moduleu-blox NINA-W102 (datasheet)
Secure ElementATECC608A (datasheet)
Operating Voltage3.3V
Input Voltage (limit)21V
DC Current per I/O Pin7 mA
Clock Speed48MHz
CPU Flash Memory256KB
SRAM32KB
EEPROMnone
Digital Input / Output Pins14
PWM Pins11 (2, 3, 5, 6, 9, 10, 11, 12, 16 / A2, 17 / A3, 19 / A5)
UART1
SPI1
I2C1
Analog Input Pins8 (ADC 8/10/12 bit)
Analog Output Pins1 (DAC 10 bit)
External InterruptsAll digital pins (all analog pins can also be used as interrput pins, but will have duplicated interrupt numbers)
LED_BUILTIN13
USBNative in the SAMD21 Processor
IMULSM6DS3 (datasheet)
Length45 mm
Width18 mm
Weight5 gr (with headers)

NOTE: The Board comes without a USB cable
