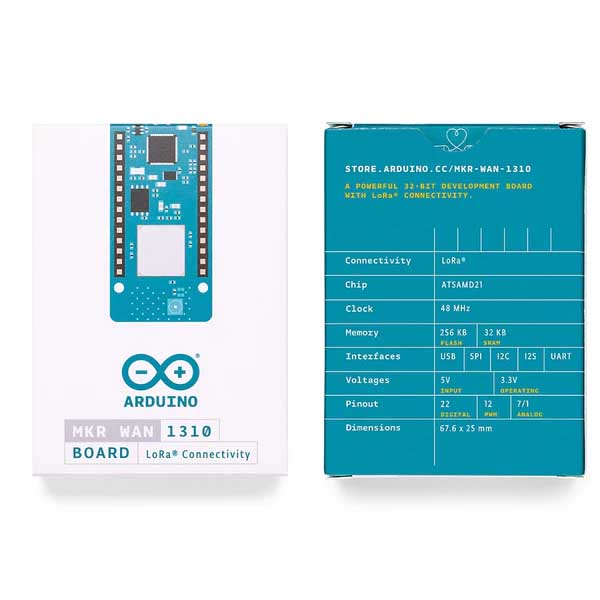

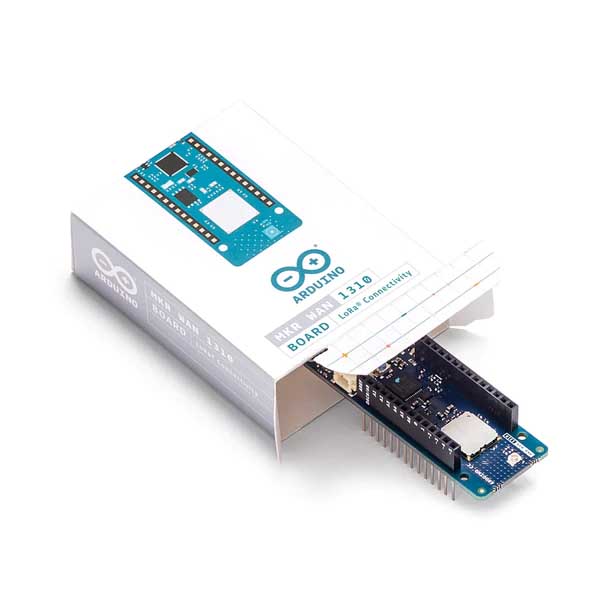

Arduino MKR WAN 1310

https://www.ram-e-shop.com/web/image/product.template/8642/image_1920?unique=263afec

ABX00029

1,950.00 EGP 1950.0 EGP 1,950.00 EGP

1,950.00 EGP

Not Available For Sale

This combination does not exist.

 Pick up from RAM Store
 Shipping: 2-3 Business Days


Internal Reference: ARDUINO.ORG.MKR.WAN.1310

This Board is 100% original & Designed & Assembled in ITALY

Connect your sensors and actuators over long distances harnessing the power of the LoRa® wireless protocol or throughout LoRaWAN™ networks.

Overview

Better and More Efficient

The MKR WAN 1310, brings in a series of improvements when compared to its predecessor, the MKR WAN 1300. While still based on the Microchip® SAMD21 low power processor, the Murata CMWX1ZZABZ LoRa® module, and the MKR family’s characteristic crypto chip (the ECC508), the MKR WAN 1310 includes a new battery charger, a 2MByte SPI Flash, and improved control of the board’s power consumption.

Improved Battery Power

The latest modifications have considerably improved the battery life on the MKR WAN 1310. When properly configured, the power consumption is now as low as 104uA! It is also possible to use the USB port to supply power (5V) to the board; run the board with or without batteries - the choice is yours.

On-board Storage

Data logging and other OTA (Over The Air) functions are now possible since the inclusion of the on board 2MByte Flash. This new exciting feature will let you transfer configuration files from the infrastructure onto the board, create your own scripting commands, or simply store data locally to send it whenever the connectivity is best. Whilst the MKR WAN 1310’s crypto chip adds further security by storing credentials & certificates in the embedded secure element.

These features make it the perfect IoT node and building block for low-power wide-area IoT devices.

Tech specs

The Arduino MKR WAN 1310 is based on the SAMD21 microcontroller.

MicrocontrollerSAMD21 Cortex®-M0+ 32bit low power ARM MCU (datasheet)
Radio moduleCMWX1ZZABZ (datasheet)
Board Power Supply (USB/VIN)5V
Secure ElementATECC508 (datasheet)
Supported Batteriesrechargeable Li-Ion, or Li-Po, 1024 mAh minimum capacity
Circuit Operating Voltage3.3V
Digital I/O Pins8
PWM Pins13 (0 .. 8, 10, 12, 18 / A3, 19 / A4)
UART1
SPI1
I2C1
Analog Input Pins7 (ADC 8/10/12 bit)
Analog Output Pins1 (DAC 10 bit)
External Interrupts8 (0, 1, 4, 5, 6, 7, 8, 16 / A1, 17 / A2)
DC Current per I/O Pin7 mA
CPU Flash Memory256 KB (internal)
QSPI Flash Memory2MByte (external)
SRAM32 KB
EEPROMno
Clock Speed32.768 kHz (RTC), 48 MHz
LED_BUILTIN6
USBFull-Speed USB Device and embedded Host
Antenna gain2dB (bundled pentaband antenna)
Carrier frequency433/868/915 MHz
Working regionEU/US (confirmed) other countries check your region's spectrum availability
Length67.64 mm
Width25 mm
Weight32 gr.
