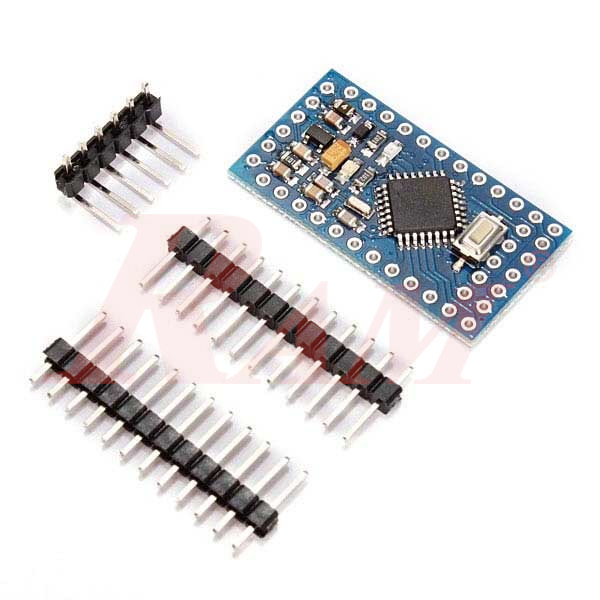

Arduino Pro Mini 328 5V/16MHz
Internal Reference:
ARDUINO.MINI.PRO
MADE IN CHINA
The Arduino Mini is a small microcontroller board originally based on the ATmega168, but now supplied with the ATmega328, intended for use on breadboards and when space is at a premium. It has 14 digital input/output pins (of which 6 can be used as PWM outputs), 8 analog inputs, and a 16 MHz crystal oscillator. It can be programmed with the Mini USB adapter or other USB or RS232 to TTL serial adapter (available at our store).
Features:
- ATmega328 running at 16MHz with external resonator (0.5% tolerance)
- 0.8mm Thin PCB
- USB connection off-board
- Supports auto-reset
- 5V regulator
- Max 150mA output
- Over-current protected
- Weight less than 2 grams!
- DC input 5V up to 12V
- Onboard Power and Status LEDs
- Analog Pins: 8
- Digital I/Os: 14
