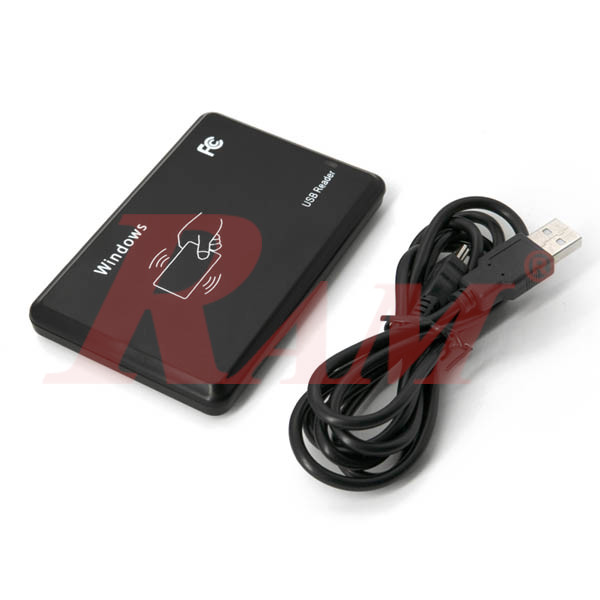

PC USB 125KHz Proximity Smart RFID ID Card Reader R20D

R20D is a high-performance 125Khz RFID smart card Desktop reader without a driver, and a reader distance of up to 30mm, it’s not only a simple aspect but also stable and reliable data.

Widely used for RFID Radio Frequency Identification systems and projects, Such as Automated parking management systems, Personal identification, Access controllers, Production Access control, etc

Features

• Communication speed: 106Kbit /s
• Serial port baud rate: 9600Kbit /s
• Power supply:DC 5V (+/- 5%)
• Current consumption:<100Ma
• Effective operating distance: 0 ~ 30mm (depending on card model)
• Interface: USB
• Status indication: 2 LEDs (one power LED status indicator), a BUZ
• Product size: 114mm × 68mm × 12mm

Installation:

1. Connect with any computer through a USB interface directly. When the buzzer sounded, the reader into the self-inspection. At the same time, LED turn into red means standby.
2. Open the output of computer software,such as Notepad, Word document or Excel sheets.
3. Put tag on the top of reader, the software will output a data (card number) of the tag. When reading the tag, LED light changes from red to green.
4. The detecting device is connected
5. Open the Device Manager of computer, If appears Human Input Device that means the Reader has been successfully into the computer.
