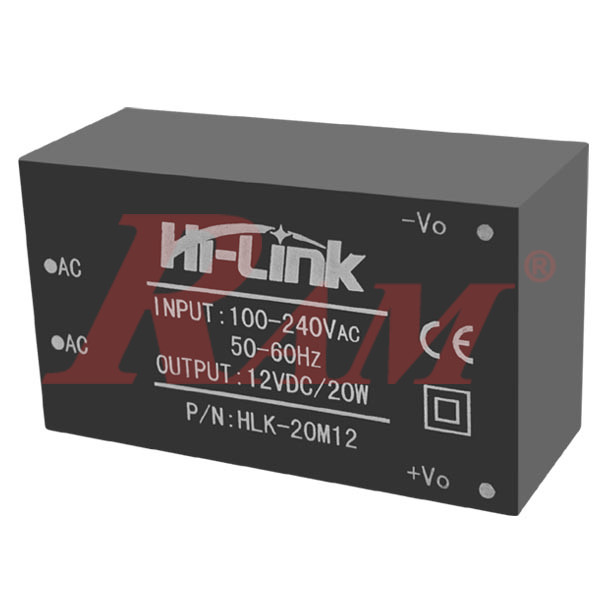

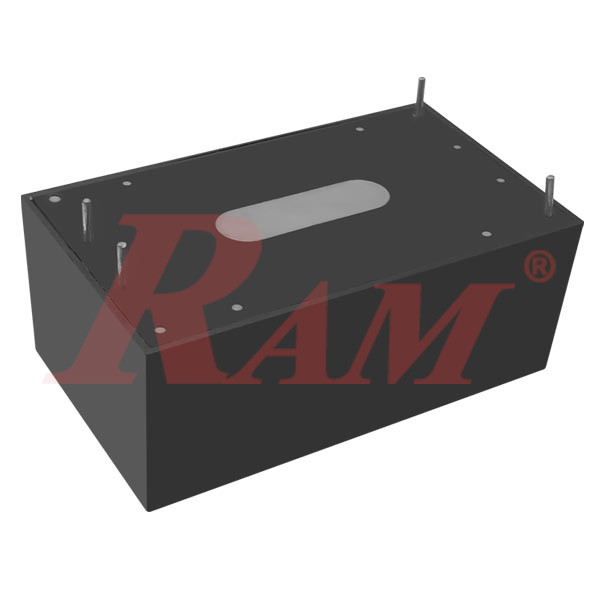

AC-DC Module 20W 220Vac to 12Vdc (HLK-20M12)
Output Voltage: 12Vdc/1.6A (20W)
Hi-Link Brand
Internal Reference:
AC.DC.HLK.20M12
RAM Electronics is an Authorized Distributor in Egypt for all Hi-Link Products.
20W Ultra-small series power module HLK-20M12 is a ultra-compact power module. It is designed to meet the requirements of EMC and Safety Test. It can be used in IOT projects, Smart homes, and so on.
Features:
- Output Voltage: 12Vdc/1.6A (20W)
-
The maximum output current 1600mA
- Meet the IP65 standard of waterproof and dustproof
- Meet UL, CE requirements
- Ultra-thin, ultra-small (Size: 56 x 32 x 22.5 mm)
- All voltage input (AC: 100 ~ 240Vac)
- Low ripple and low noise
- Output overload and short circuit protection
- High efficiency, high power density
- Low power consumption, environmental protection, no-load loss <0.1W
