RAM Electronics is an Authorized Distributor in Egypt for all Hi-Link Products.

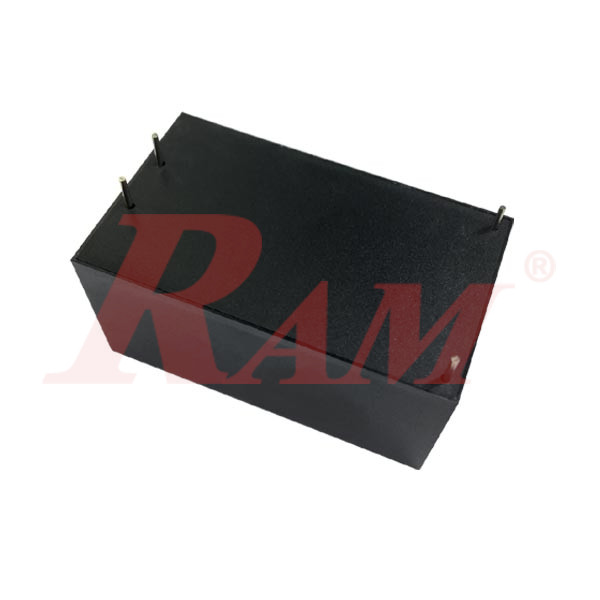

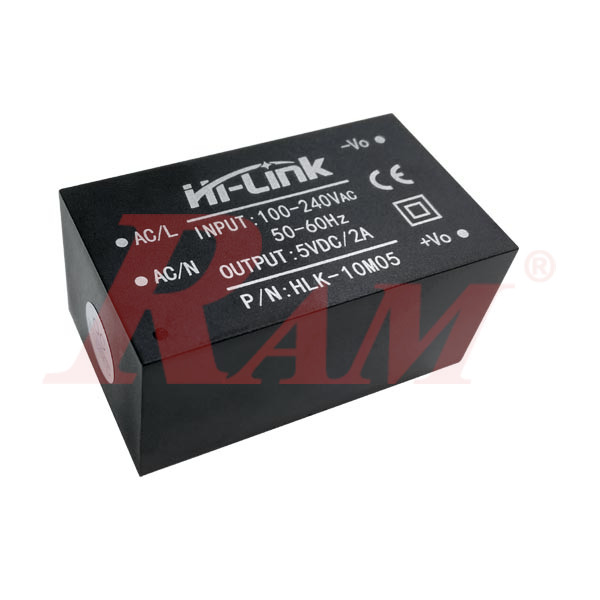

10W Ultra-small series power module HLK-10M05 is an ultra-compact power module. It is designed to meet the requirements of EMC and Safety Test. It can be used in IOT projects, Smart homes, and so on.
Features:
- Output Voltage: 5Vdc/2A (10W)
- The maximum output current 2000mA
- Meet the IP65 standard of waterproof and dustproof
- Meet UL, CE requirements

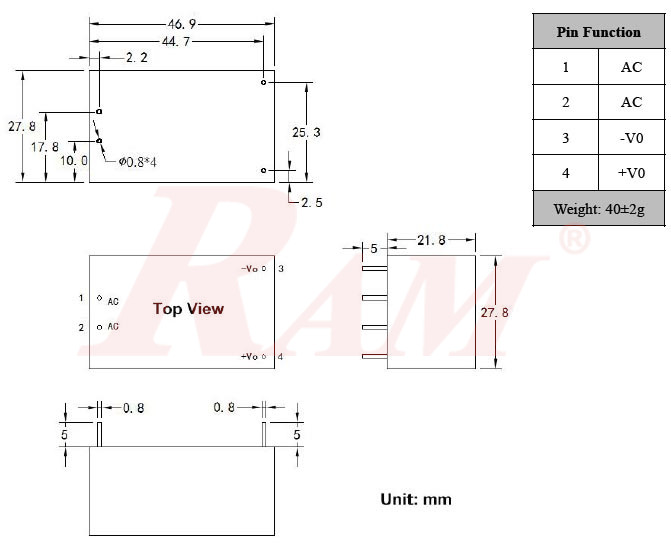

- Ultra-thin, ultra-small (Size: 46.9 x 27.8 x 21.8 mm)
- All voltage input (AC: 100 ~ 240Vac)
- Low ripple and low noise
- Output overload and short circuit protection
- High efficiency, high power density
- Low power consumption, environmental protection, no-load loss <0.1W
