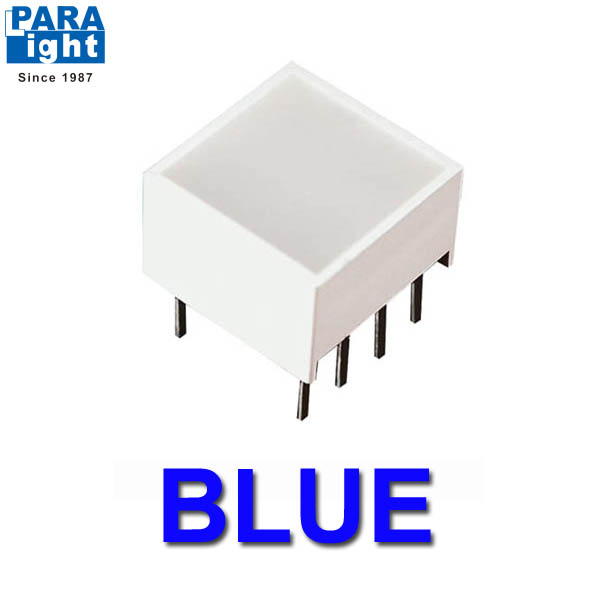

B1010UB

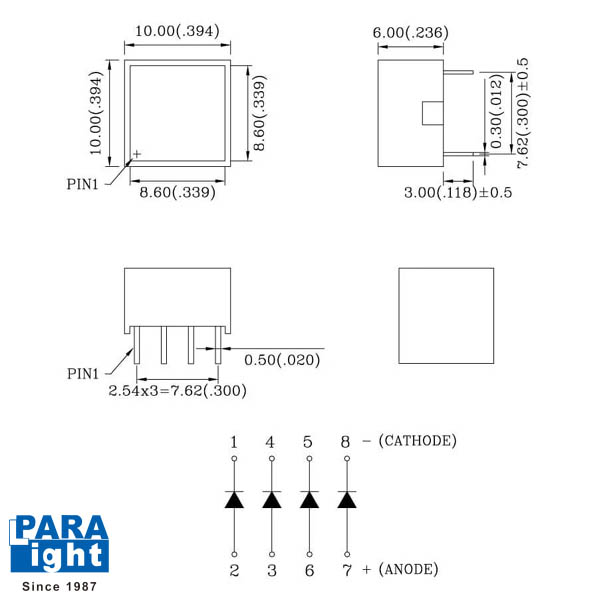

Size: 8.89 mm x 8.89 mm LED Light Bar
FEATURES
- Uniform light emitting area
- Low current operation
- Easily mounted on P.C. boards
- Flush mountable
- Excellent on/off contrast
- Can be used with panels and legend mounts
- RoHS compliant
- Lens Type: Diffused, White
- Wavelength - Peak: 450nm
- Typ. Luminous Intensity Iv (mcd)/Seg.: 5 mcd
- Current: 25mA
- Voltage Rating: 2.1V
- Mfr: PARA Light
APPLICATIONS
- Home and smart appliances
- Display time and digital combination
- Industrial and instrumental applications
- Numeric status
