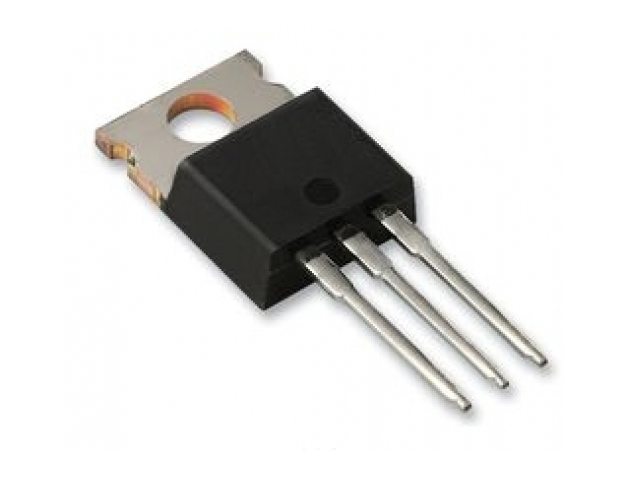

20N60C3

https://www.ram-e-shop.com/web/image/product.template/6223/image_1920?unique=6d119cf

45A, 600V, UFS Series N-Channel IGBT

110.00 EGP 110.0 EGP 110.00 EGP

110.00 EGP

Not Available For Sale

This combination does not exist.

 Pick up from RAM Store
 Shipping: 2-3 Business Days


Internal Reference: 20N60.SMALL

20N60C3 "45A, 600V, UFS Series N-Channel IGBT"

45A, 600V, UFS Series N-Channel IGBT in TO-263AB Package.

This family of MOS gated high-voltage switching devices combines the best features of MOSFETs and bipolar transistors. These devices have the high input impedance of a MOSFET and the low on-state conduction loss of a bipolar transistor.

The much lower on-state voltage drop varies only moderately between 25oC and 150oC. The IGBT is ideal for many high-voltage switching applications operating at moderate frequencies where low conduction losses are essential, such as: AC and DC motor controls, power supplies and drivers for solenoids, relays and contactors.

Features

  • 45A, 600V, TC = 25oC
  • 600V Switching SOA Capability
  • Typical Fall Time 108ns at TJ = 150oC
  • Short Circuit Rating
  • Low Conduction Loss
