  2. UNI-T UPO1202CS 2-Channel Ultra Phosphor Oscilloscope 200MHz جهاز اوسلسكوب 200 ميجاهرتز 2 قناة مزود بقياسات وخصائص متقدمة

UNI-T UPO1202CS 2-Channel Ultra Phosphor Oscilloscope 200MHz جهاز اوسلسكوب 200 ميجاهرتز 2 قناة مزود بقياسات وخصائص متقدمة

https://www.ram-e-shop.com/web/image/product.template/9698/image_1920?unique=2c39c90

With Serial bus trigger and hardware decoding (RS232, I²C, SPI, CAN, LIN)
UNI-T Brand

17,500.00 EGP 17500.0 EGP 17,500.00 EGP

17,500.00 EGP

Not Available For Sale

هذه التركيبة غير موجودة.

تواصل معنا
ضمان لمدة 1 عام

 متاح للشراء مباشرة من فرع رام للالكترونيات
 متاح خدمة الشحن للمنتج خلال 2-3 ايام عمل

مرجع داخلي: AVO.UPO1202CS.UNIT

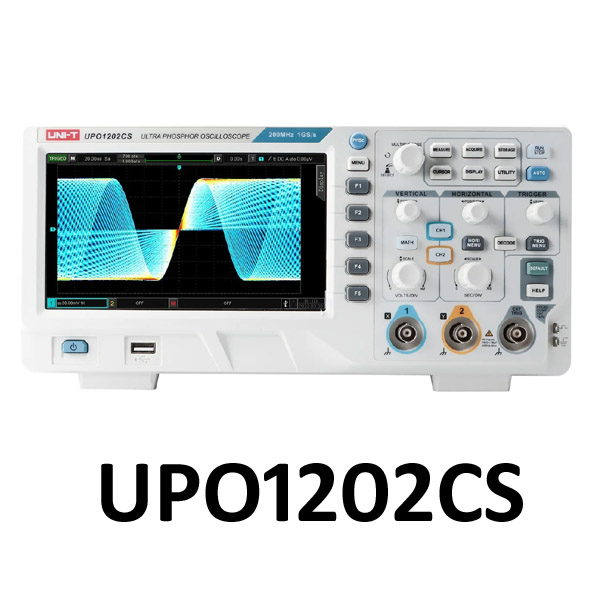

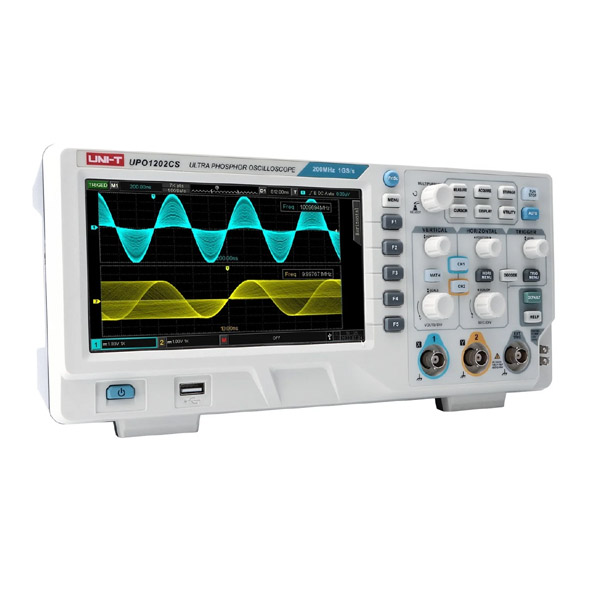

UNI-T UPO1202CS Digital Phosphor Oscilloscope (200 MHz, 2 Channels)

The UNI-T UPO1202CS is a high-performance 2-channel digital phosphor oscilloscope with 200 MHz bandwidth, designed for electronic design, debugging, education, and industrial applications.

Using UNI-T’s Ultra Phosphor display technology and parallel digital signal processing, it delivers exceptionally fast waveform capture, deep memory, and real-time hardware decoding, allowing engineers to clearly observe signal details, glitches, jitter, and rare abnormal events.

Key Features
  • 200 MHz analog bandwidth
  • 2 analog input channels
  • Real-time sampling rate: 1 GSa/s (per channel, non-interleaved)
  • Deep memory: 56 Mpts per channel
  • Waveform capture rate up to 500,000 wfms/s
  • Hardware real-time waveform recording: 100,000 frames
  • Ultra Phosphor™ display technology with 256-level grayscale
  • 7-inch TFT LCD (800 × 480 resolution)
  • Low background noise: < 100 µVrms
  • 1 M-point FFT with spectrum and waterfall display
  • 36 automatic measurement parameters
  • Rich trigger system including advanced and serial triggers
  • Hardware serial bus triggering & decoding
  • Dual-channel True RMS DVM
  • Multi-Scopes mode for independent channel display
  • Web-based remote control
  • SCPI programmable control
  • USB & LAN connectivity
Core Technical Specifications – UPO1202CS
Acquisition & Performance
  • Bandwidth (-3 dB): DC to 200 MHz
  • Channels: 2
  • Rise Time (typical): ≤ 1.8 ns
  • Sampling Rate: 1 GSa/s (each channel)
  • Memory Depth: 56 Mpts per channel
  • Waveform Capture Rate:
    • 150,000 wfms/s (Normal)
    • 500,000 wfms/s (Fast Acquire)
  • Waveform Recording: 100,000 frames
Display
  • Screen Size: 7-inch TFT LCD
  • Resolution: 800 × 480
  • Color Depth: 24-bit true color
  • Persistence (Afterglow): 50 ms to Infinite
  • Display Mode: Point / Vector
Vertical System
  • Vertical Resolution: 8-bit
  • Vertical Scale: 1 mV/div to 20 V/div
  • Input Coupling: DC / AC / GND
  • Input Impedance: 1 MΩ ± 2% || 16 pF ± 3 pF
  • Maximum Input Voltage: 400 V (DC + Vpeak)
  • Bandwidth Limit (typical): 20 MHz
  • DC Gain Accuracy:
    • < 10 mV: ±4% FS
    • ≥ 10 mV: ±3% FS
Horizontal System
  • Time Base Range: 1 ns/div to 1000 s/div
  • Time Base Accuracy: ≤ ±(50 + 2 × years) ppm
  • Time Base Modes: Y-T, X-Y, Roll
  • Multi-Scopes: 2 independent scopes
Trigger System
  • Trigger Modes: Auto, Normal, Single
  • Trigger Types:
    Edge, Pulse Width, Runt, Window, Nth Edge, Delay, Timeout, Duration, Setup & Hold, Slope, Video, Pattern
  • Trigger Coupling: DC, AC, HFRJ, LFRJ, Noise Reject
  • Serial Bus Triggering:
    RS-232 / UART, I²C, SPI
    (CAN & LIN available as optional upgrades)
Measurement & Analysis
  • Automatic Measurements: 36 parameters
  • Measurement Statistics: Min, Max, Mean, Std Dev, Count
  • Cursor Measurements: ΔV, ΔT, Frequency, Phase
  • Frequency Counter: Dual-channel 7-bit hardware counter
  • Math Functions:
    +, −, ×, ÷, FFT, digital filtering, logic operations
  • FFT:
    • 1 M points
    • Split-screen, full-screen, and waterfall display
Interfaces & Connectivity
  • USB Host
  • USB Device
  • LAN (Ethernet)
  • EXT Trigger
  • AUX Out (Trigger Out / Pass-Fail)
  • Web remote access
  • SCPI command support
General Specifications
  • Power Supply: 100–240 VAC ± 10%, 50/60 Hz
  • Power Consumption: ≤ 100 VA
  • Cooling: Forced-air fan
  • Operating Temperature: 0 °C to +40 °C
  • Dimensions (W × H × D): 306 × 138 × 124 mm
  • Weight: 3.0 kg
  • Calibration Interval: 1 year
  • Certifications: CE, UKCA, cETLus
Standard Accessories
  • Power cord
  • USB data cable
  • 2 × passive probes (200 MHz)
  • User documentation
Typical Applications
  • Electronic circuit design & debugging
  • Embedded systems development
  • Power electronics and SMPS analysis
  • Serial bus analysis (UART, I²C, SPI)
  • Industrial electronics troubleshooting
  • Education and laboratory training
Summary

The UNI-T UPO1202CS delivers 200 MHz performance, deep memory, ultra-fast capture, and advanced decoding in a compact and cost-effective oscilloscope—making it an excellent choice for engineers, technicians, educators, and industrial users who need reliable high-frequency signal analysis.
