  2. UNI-T MSO3352E Mixed Signal Oscilloscope 350 MHz - 2 Analog + 16 Digital Channels, 2.5 GSa/s Sampling Rate, and Built-in Function / Arbitrary Waveform Generator جهاز أوسيلوسكوب مختلط الإشارة 350 ميجاهرتز 2 قناة و16 قناة رقمية ومولد موجات مدمج

UNI-T MSO3352E Mixed Signal Oscilloscope 350 MHz - 2 Analog + 16 Digital Channels, 2.5 GSa/s Sampling Rate, and Built-in Function / Arbitrary Waveform Generator جهاز أوسيلوسكوب مختلط الإشارة 350 ميجاهرتز 2 قناة و16 قناة رقمية ومولد موجات مدمج

https://www.ram-e-shop.com/web/image/product.template/9703/image_1920?unique=2c39c90

With Serial bus trigger and hardware decoding (UART, RS-232, I²C, SPI, CAN, CAN-FD, LIN, FlexRay)
UNI-T Brand

76,500.00 EGP 76500.0 EGP 76,500.00 EGP

76,500.00 EGP

Not Available For Sale

هذه التركيبة غير موجودة.

تواصل معنا
ضمان لمدة 1 عام

 متاح للشراء مباشرة من فرع رام للالكترونيات
 متاح خدمة الشحن للمنتج خلال 2-3 ايام عمل

مرجع داخلي: AVO.MSO3352E.UNIT

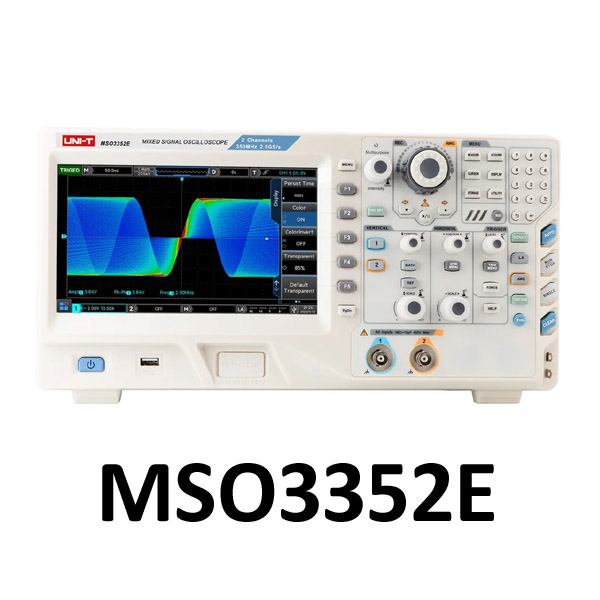

UNI-T MSO3352E Mixed Signal Oscilloscope (350 MHz, 2CH + 16 Digital)

The UNI-T MSO3352E is a high-performance mixed signal oscilloscope that combines a 350 MHz digital phosphor oscilloscope with a 16-channel logic analyzer, offering deep memory, fast waveform capture, and advanced triggering in a compact benchtop design.

Built on Ultra Phosphor™ 2.0 technology, the MSO3352E is ideal for embedded system development, digital & analog circuit debugging, power electronics, automotive electronics, and education.

Key Features
  • 350 MHz analog bandwidth
  • 2 analog channels + 16 digital channels
  • Real-time sampling rate up to 2.5 GSa/s
  • Deep memory: 70 Mpts per channel (up to 250 Mpts max)
  • Ultra-fast waveform capture: up to 1,000,000 wfms/s
  • Hardware real-time waveform recording: up to 120,000 frames
  • 8-inch capacitive touch display (800 × 480)
  • Ultra Phosphor™ 2.0 display with 256-level grayscale
  • Advanced zone trigger for rare event capture
  • Full-memory hardware protocol decoding
  • Built-in True RMS DVM
  • Multi-Scopes 2.0 split-screen mode
  • Web-based remote control
  • SCPI programmable commands
Core Technical Specifications – MSO3352E
Analog Performance
  • Bandwidth (-3 dB): 350 MHz
  • Channels: 2
  • Rise time (typical): ≤ 1 ns
  • Sampling rate:
    • 2.5 GSa/s (half-channel interleaved)
    • 1.25 GSa/s (all channels)
  • Vertical resolution: 8-bit
  • Vertical scale: 1 mV/div to 10 V/div
  • Input impedance:
    • 1 MΩ ± 2 % || 18 pF ± 3 pF
    • 50 Ω ± 1.5 %
  • Maximum input voltage:
    • 1 MΩ: 400 V (DC + peak)
    • 50 Ω: 5 Vrms
Digital (Logic Analyzer)
  • Digital channels: 16
  • Sampling rate: up to 1.25 GSa/s
  • Minimum detectable pulse width: 2 ns
  • Thresholds: TTL, CMOS, LVDS, ECL, PECL, Custom
Acquisition & Memory
  • Memory depth: 70 Mpts per channel
  • Max memory: 250 Mpts
  • Waveform capture rate:
    • 200,000 wfms/s (Normal)
    • 1,000,000 wfms/s (Fast Acquire)
  • Sequence recording: 120,000 frames
Display & Interface

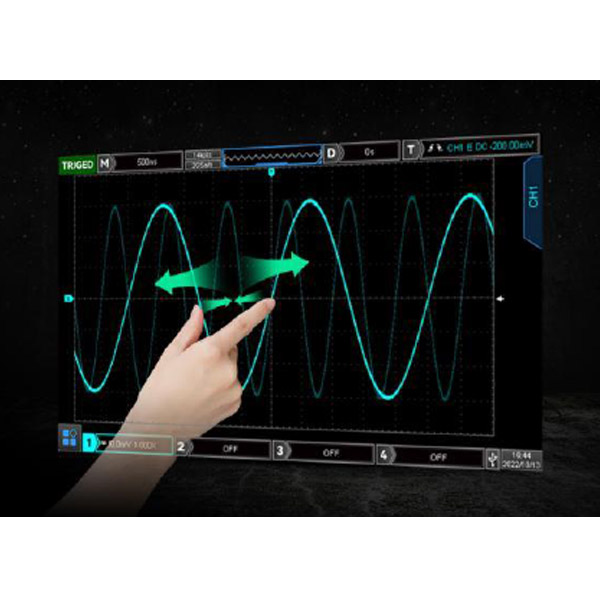

  • Screen: 8-inch TFT capacitive touch
  • Resolution: 800 × 480
  • Color depth: 24-bit
  • Persistence: 50 ms to Infinite
  • Touch, knob, button, mouse & keyboard support
Trigger System
  • Trigger modes: Auto / Normal / Single
  • Trigger types:
    Edge, Pulse Width, Runt, Window, Nth Edge, Delay, Timeout, Duration, Setup & Hold, Slope, Video, Pattern
  • Zone trigger: Supported
  • Serial bus triggering (optional):
    RS-232/UART, I²C, SPI, CAN, CAN-FD, LIN, FlexRay
Measurement & Analysis
  • Automatic measurements: 36 waveform parameters
  • Cursor measurements: ΔV, ΔT, Frequency, Phase
  • Frequency counter: 7-bit hardware counter
  • Math functions: +, −, ×, ÷, FFT, digital filters, logic
  • FFT: 1 M-point FFT with waterfall display
  • DVM: Multi-channel AC / DC True RMS

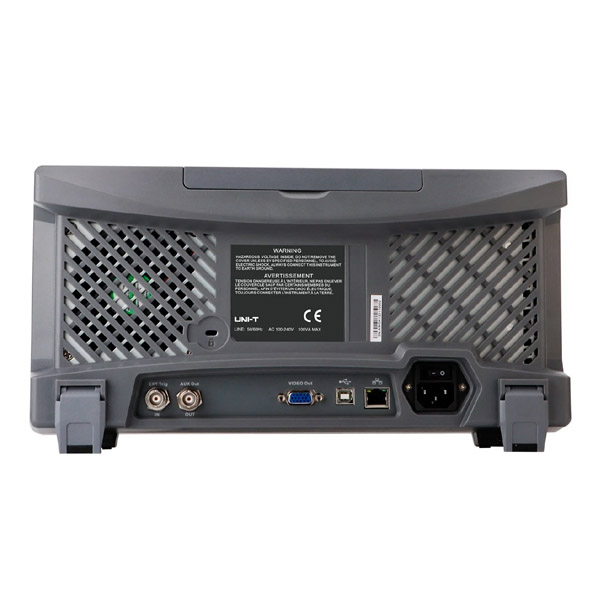

Connectivity & Interfaces
  • USB Host
  • USB Device
  • LAN (Ethernet)
  • EXT Trigger
  • AUX Out (Trigger / Pass-Fail)
  • VGA output
  • Web server & SCPI remote control
General Specifications
  • Power supply: 100–240 VAC ± 10 %, 50/60 Hz
  • Power consumption: ≤ 100 VA
  • Operating temperature: 0 °C to +40 °C
  • Dimensions (W × H × D): 370 × 185 × 115 mm
  • Weight: 4.5 kg
  • Calibration interval: 1 year
  • Certifications: CE, UKCA, cETLus

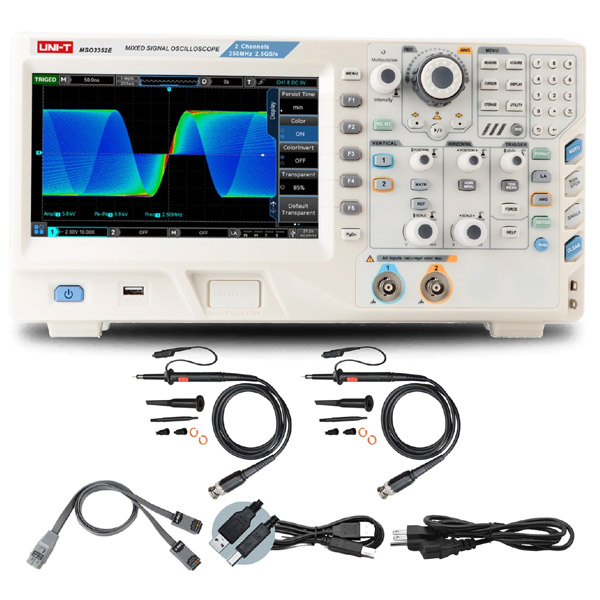

Standard Accessories
  • Power cord
  • USB data cable
  • 2 × passive probes (350 MHz)
  • Logic analyzer probe (UT-M15)
  • User documentation
Typical Applications
  • Embedded system development
  • Mixed-signal circuit debugging
  • Power electronics & SMPS analysis
  • Automotive electronics
  • Protocol analysis (UART, I²C, SPI, CAN, LIN)
  • R&D laboratories and education
Summary

The UNI-T MSO3352E delivers 350 MHz performance, deep memory, ultra-fast capture, and integrated logic analysis in a compact mixed-signal platform—making it an excellent choice for professional electronics design, debugging, and education.
