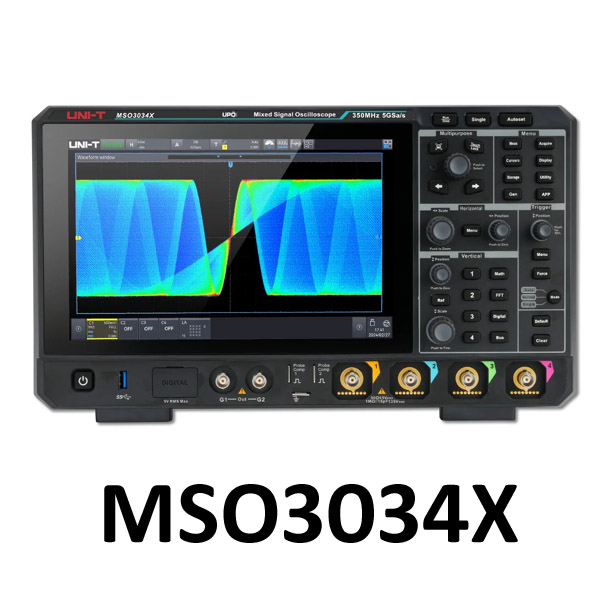

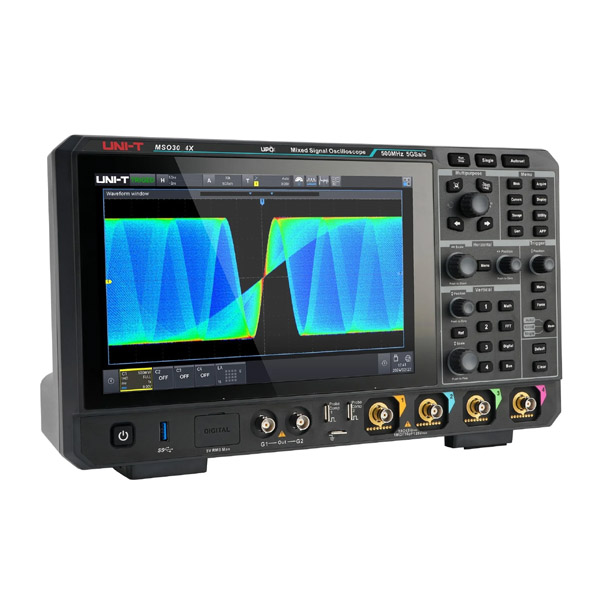

UNI-T MSO3034X Mixed Signal Oscilloscope (350 MHz, 4CH + 16 Digital, 9-in-1 Platform)

The UNI-T MSO3034X is a high-end mixed signal oscilloscope combining 350 MHz bandwidth, 4 analog channels, and 16 digital channels with an industry-leading 500 Mpts memory depth and Ultra Phosphor™ 3.0 display technology.

Designed for advanced R&D, embedded systems, automotive electronics, power electronics, and high-speed digital design, the MSO3034X integrates nine instruments in one platform, delivering exceptional performance, flexibility, and value for professional engineers.

Key Features

• 350 MHz bandwidth
• 4 analog channels + 16 digital channels
• Real-time sampling rate up to 5 GSa/s
• Ultra-deep memory: up to 500 Mpts
• Ultra-fast waveform capture:
  • 800,000 wfms/s (normal)
  • 2,000,000 wfms/s (sequence mode)
• Ultra Phosphor™ 3.0 technology with 256-level grayscale
• 10.1-inch HD capacitive multi-touch screen (1280 × 800)
• Nine-in-one integrated instrument:

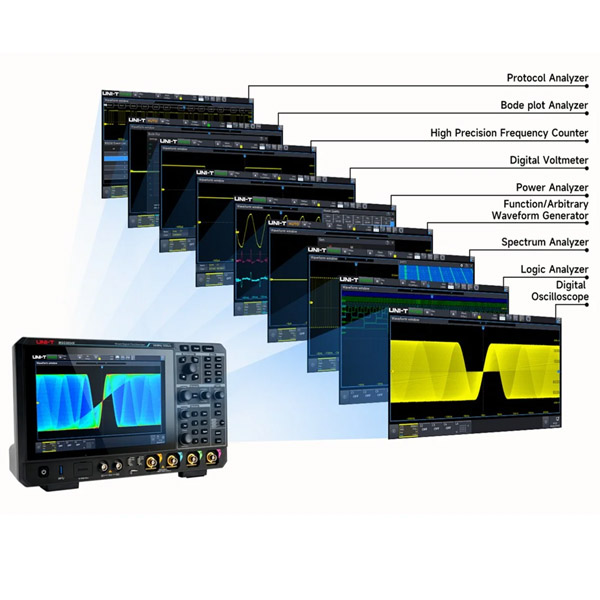

  Oscilloscope, Logic Analyzer, AWG, Spectrum Analyzer, DVM, Frequency Counter, Protocol Analyzer, Bode Plot Analyzer, Power Analyzer
• Advanced zone triggering for rare event capture
• Deep hardware waveform recording: up to 200,000 frames
• Full-memory hardware protocol decoding
• Web-based remote control & SCPI programming

Core Performance Specifications – MSO3034X

Analog Channels

• Bandwidth: 350 MHz (–3 dB)
• Channels: 4
• Rise time (typical): ≤ 1.0 ns
• Sampling rate:
  • 5 GSa/s (interleaved)
  • 2.5 GSa/s (non-interleaved)
• Vertical resolution: 8-bit
  (Enhanced Resolution up to 12-bit)
• Vertical scale: 500 µV/div to 10 V/div
• Input impedance:
  • 1 MΩ ± 2% || 16 pF ± 3 pF
  • 50 Ω ± 1.5%
• Maximum input voltage:
  • 1 MΩ: 400 V (DC + AC peak)
  • 50 Ω: 5 Vrms

Digital (Logic Analyzer)

• Channels: 16 (UT-M15 probe required - NOT INCLUDED)
• Sampling rate: up to 1.25 GSa/s
• Memory depth: up to 250 Mpts
• Minimum detectable pulse width: 800 ps
• Thresholds: TTL, CMOS, ECL, LVDS, Custom

Acquisition & Memory

• Memory depth: up to 500 Mpts
• Sequence mode: up to 200,000 frames
• Dead time: < 1 µs (typical)

Display & User Interface

• Screen: 10.1-inch capacitive multi-touch
• Resolution: 1280 × 800
• Persistence: 50 ms to Infinite
• Multi-windows display with drag-and-drop
• Touch, gesture, knob, mouse & keyboard support

Trigger System

• Trigger modes: Auto / Normal / Single
• Trigger types:
  Edge, Pulse Width, Runt, Window, Nth Edge, Delay, Timeout, Duration, Setup & Hold, Slope, Video, Pattern
• Zone triggering: Dual-zone, must-intersect / must-not-intersect
• Serial bus triggering:
  UART, I²C, SPI (standard)
  CAN, CAN-FD, LIN, FlexRay, SENT, Audio, MIL-STD-1553B, ARINC429 (options)

Analysis & Measurement

• Automatic measurements: 56 parameters
• Simultaneous display: up to 27 measurements
• Histogram & trend analysis
• Math functions: +, −, ×, ÷, FFT, digital filters
• FFT: up to 4 Mpts, waterfall view
• DVM: DC / AC RMS / AC + DC RMS
• Frequency counter: 7-digit hardware counter
• Power analysis (option): ripple, harmonics, switching loss, SOA

Built-in AWG (Optional)

• Channels: 2
• Max frequency: 50 MHz
• Sampling rate: 250 MSa/s
• Resolution: 16-bit
• Waveforms: Sine, Square, Pulse, Ramp, Noise, DC, Arbitrary
• Modulation: AM, FM, ASK, FSK, Sweep
• Bode plot analysis supported

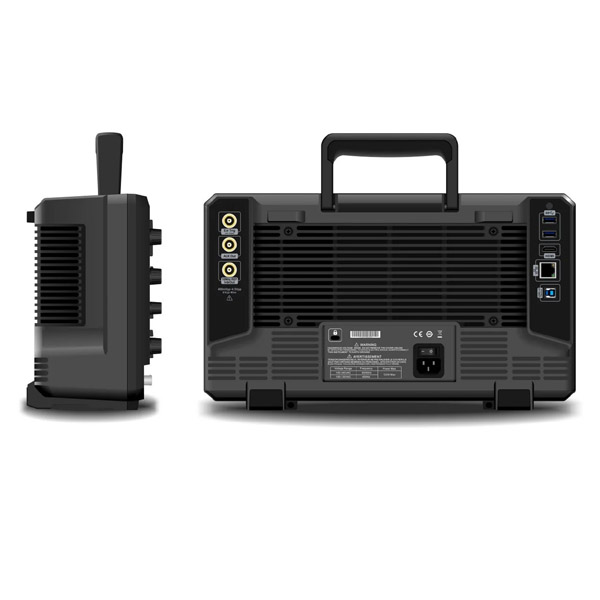

Connectivity & Interfaces

• USB 3.0 Host (front & rear)
• USB 3.0 Device
• LAN (VXI-11)
• HDMI output
• AUX Out (Trigger / Pass-Fail / DVM)
• 10 MHz reference in/out
• Wi-Fi (802.11 b/g/n)
• Web server & SCPI remote control

General Specifications

• Power supply: 100–240 VAC ± 10%, 50/60 Hz
• Power consumption: ≤ 120 W
• Operating temperature: 0 °C to +40 °C
• Dimensions (W × H × D): 378 × 218 × 120 mm
• Weight: 3.83 kg
• Calibration interval: 1 year
• Certifications: CE, UKCA, IEC 61326-1

Standard Accessories

• Power cable
• USB 3.0 cable (UT-D30)
• BNC-BNC cable
• Alligator clip cable
• 4 × passive probes (350 MHz)
• User documentation

Typical Applications

• High-speed digital & mixed-signal debugging
• Embedded systems & FPGA development
• Automotive electronics & CAN/CAN-FD analysis
• Power electronics & power integrity testing
• Advanced R&D laboratories
• University & research institutions

Summary

The UNI-T MSO3034X is a professional-grade 350 MHz mixed signal oscilloscope offering extreme memory depth, ultra-fast capture, advanced triggering, and nine-instrument integration, making it an excellent choice for demanding engineering and research environments.
