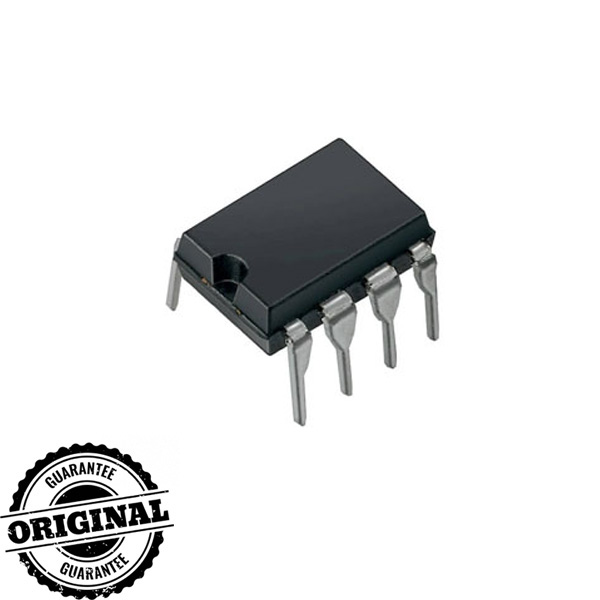

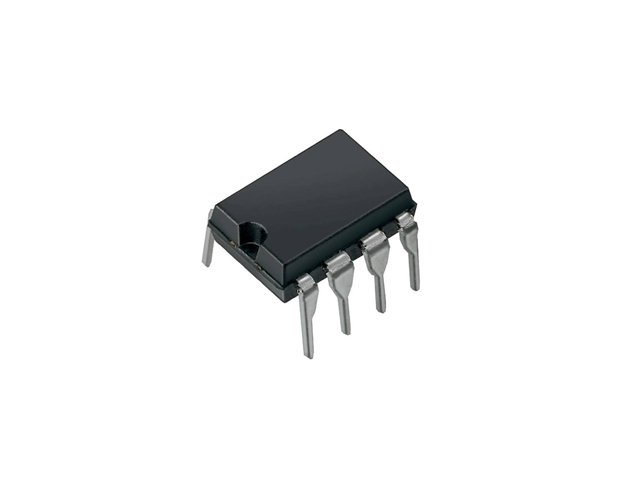

OP07CP

The OP07CP is a high-precision operational amplifier featuring ultra-low offset voltage, excellent stability, and low drift characteristics. Ideal for instrumentation, sensor amplification, measurement systems, and precision analog circuits.

Description

The OP07CP is a precision operational amplifier specifically designed for applications requiring extremely low input offset voltage and high accuracy. Through advanced trimming techniques during manufacturing, the OP07 achieves exceptional DC performance without the need for external offset adjustment in most applications.

This operational amplifier is widely used in instrumentation equipment, precision measurement systems, sensor signal conditioning, data acquisition systems, and industrial control applications. Its low offset voltage, low temperature drift, and high open-loop gain make it an excellent choice for precision analog designs.

The DIP-8 package provides easy integration into breadboards, prototyping projects, educational labs, and through-hole PCB designs.

Key Features

• Ultra-low input offset voltage
• Low offset voltage drift over temperature
• High open-loop voltage gain
• Low input bias current
• Excellent long-term stability
• Low noise performance
• Wide supply voltage range
• Suitable for precision DC amplification
• DIP-8 package for easy prototyping and assembly
• No external offset nulling required in most applications

Technical Specifications

• Part Number: OP07CP
• Function: Precision Operational Amplifier
• Package Type: DIP-8
• Number of Amplifiers: 1
• Supply Voltage (Dual Supply): ±3V to ±18V
• Supply Voltage (Single Supply): 6V to 36V
• Typical Input Offset Voltage: 75 µV
• Maximum Input Offset Voltage: 150 µV
• Input Bias Current: Typically 2 nA
• Input Offset Current: Typically 0.4 nA
• Open-Loop Gain: Typically 200 V/mV
• Slew Rate: 0.3 V/µs
• Gain Bandwidth Product: 0.6 MHz
• Operating Temperature: 0°C to +70°C (Commercial Grade)
• Mounting Type: Through-Hole

Applications

• Precision instrumentation amplifiers
• Sensor signal conditioning
• Data acquisition systems
• Temperature measurement circuits
• Strain gauge amplifiers
• Medical instrumentation
• Digital multimeters and test equipment
• Precision voltage references
• Industrial process control systems
• Laboratory measurement equipment
