Product Name

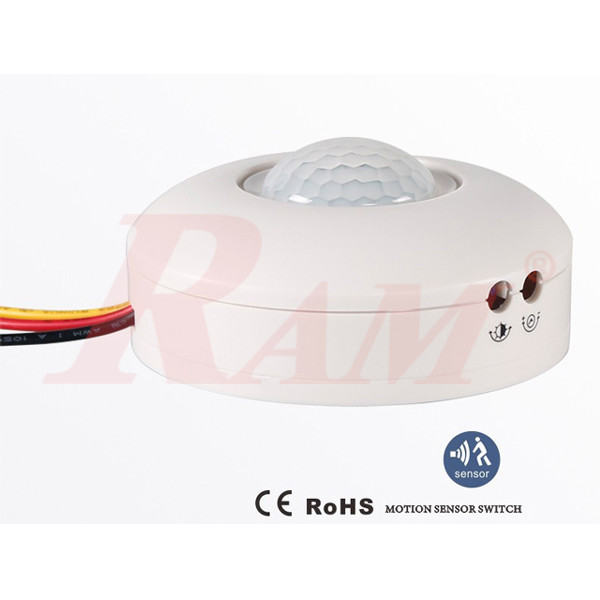

360° Ceiling Motion Sensor Switch for Lighting – Model TDL-9958J
Short Description
A smart motion sensor switch designed to automatically control lighting based on human presence. Ideal for energy saving and convenience in residential, commercial, and industrial spaces.
Features
- Automatic ON/OFF based on motion detection
- Full 360° detection coverage
- Built-in light sensor (does not operate in daylight)
- Adjustable delay time (auto shut-off)
- Wide detection range up to 7 meters
- LED status indicator for easy installation and monitoring
- Temperature compensation for stable performance
- Ceiling-mounted design for optimal coverage
Applications
- Corridors & hallways
- Staircases & passageways
- Bathrooms
- Garages
- Warehouses
- Offices & commercial areas
Technical Specifications
- Model: TDL-9958J
- Operating Voltage: AC 110V – 250V (50/60Hz)
- Operating Temperature: -20°C to +50°C
- Static Power Consumption: < 0.026W
- Max Load Power: 800W
- Output Type: Induction Output
- Detection Angle: 360°
- Detection Distance: 5 – 7 meters
- Ambient Light Range: 5 Lux – 500 Lux (adjustable)
- Delay Time: 16 – 350 seconds (adjustable)
- Connection Type: Input 220VAC / Output 220VAC
- Material: Porcelain
- Dimensions: 89 × 36 mm
How It Works
- When motion is detected → the light turns ON automatically
- When no motion is detected → the light turns OFF after the set delay
- Continuous movement keeps the light ON
Important Notes
- Will not operate in daylight when light sensor is enabled
- Best installed on ceilings for full coverage
- Suitable for all types of lighting and appliances within rated load
