UTi712S Thermal Imager Camera

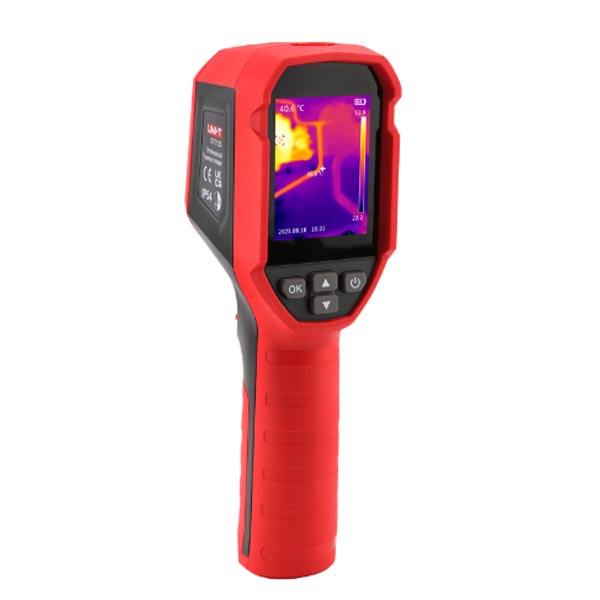

UNI-T UTi712S Thermal Imager Camera

The UNI-T UTi712S is a compact and professional thermal imaging camera designed for fast, accurate, non-contact temperature inspection. Featuring a 120 × 90 infrared sensor, focus-free operation, and a rugged portable design, the UTi712S is ideal for electrical inspection, HVAC troubleshooting, mechanical maintenance, and building diagnostics.

Key Features

• 120 × 90 infrared resolution for clear thermal visualization
• Wide temperature measurement range: –20 °C to 400 °C
• High thermal sensitivity (NETD ≤ 60 mK) for detecting subtle temperature differences
• Focus-free design for quick and easy inspections
• 6 selectable color palettes to enhance thermal contrast
• High/Low temperature alarm with icon, LED flashlight, and buzzer alert
• Built-in laser pointer for accurate target indication
• Integrated LED light for low-light working environments
• PC software support for image analysis and reporting
• Rugged handheld design, IP54 rated and 2 m drop-proof
• Long-lasting rechargeable Li-ion battery

Technical Specifications

Thermal Imaging

• IR Resolution: 120 × 90 pixels
• Display: 2.4″ TFT LCD (320 × 240)
• Field of View (FOV): 50° × 38°
• Thermal Sensitivity (NETD): ≤ 60 mK
• Spatial Resolution (IFOV): 7.3 mrad
• Frame Rate: ≤ 25 Hz
• Spectral Range: 8 – 14 µm
• Focus: Focus-free

Temperature Measurement

• Measurement Range: –20 °C to 400 °C
• Accuracy: ±2 °C or ±2 % (whichever is greater)
• Emissivity: Adjustable 0.01 – 1.00 (default 0.95)

Functions

• Color Palettes: 6
  (White Hot, Black Hot, Ironbow, Rainbow HC, Rainbow, Lava)
• Image Mode: Thermal
• High/Low Temperature Alarm: Icon, LED flashlight & buzzer
• Laser Pointer: Yes
• LED Light: Yes
• PC Software Analysis: Supported

General Characteristics

• Battery: Built-in Li-ion battery (3.7 V, 2600 mAh)
• Battery Operation Time: ≥ 8 hours
• USB Interface: Type-C
• Protection Rating: IP54
• Drop Resistance: 2 m
• Storage: 16 GB microSD card
• Image / Video Format: BMP
• Certifications: CE, UKCA, FCC, RoHS
• Net Weight: 310 g
• Product Size: 197 × 72 × 60 mm

Packing Details

Standard Accessories Included:

• Hand strap
• USB Type-C cable
• English user manual
• Documents download & operation guide card

Typical Applications

• Electrical panels and power distribution inspection
• HVAC system diagnostics and troubleshooting
• Mechanical and motor temperature analysis
• Preventive and predictive maintenance
• Building inspection and insulation checks
• Automotive and equipment thermal diagnostics

The UNI-T UTi712S Thermal Imager Camera delivers portable thermal imaging, reliable performance, and essential professional features, making it an excellent choice for technicians who need fast, accurate temperature diagnostics in daily fieldwork.
