UTi165A+ Thermal Imager Camera

https://www.ram-e-shop.com/web/image/product.template/7828/image_1920?unique=db8a4e9

160 × 120 infrared resolution
Temperature Range: –10 °C to 400 °C
UNI-T Brand

16,500.00 EGP 16500.0 EGP 16,500.00 EGP

16,500.00 EGP

Not Available For Sale

This combination does not exist.

Contact Us
1 Year Warranty

 Pick up from RAM Store
 Shipping: 2-3 Business Days

Internal Reference: AVO.UTI165A.UNIT

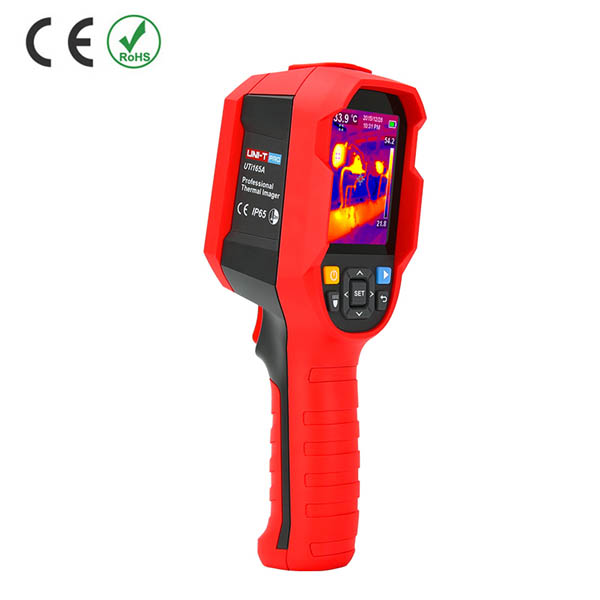

UNI-T UTi165A+ Heavy-Duty Thermal Imager Camera

The UNI-T UTi165A+ is a rugged, heavy-duty thermal imaging camera designed for professional troubleshooting and preventive maintenance. With a 160 × 120 infrared resolution, wide temperature measurement range, and durable IP65-rated housing, it delivers reliable thermal diagnostics in harsh industrial and field environments. The UTi165A+ is a powerful yet affordable solution for electrical inspection, mechanical maintenance, HVAC diagnostics, and building inspections.

Key Features
  • 160 × 120 infrared resolution for clear and accurate thermal images
  • Wide temperature measurement range: –10 °C to 400 °C (14 °F to 752 °F)
  • 2.8″ TFT color display (320 × 240 pixels) for easy viewing
  • Auto hot/cold spot tracking for fast fault detection
  • High/Low temperature alarm with visual icon and LED flashlight alert
  • 5 selectable color palettes for enhanced thermal contrast
  • Focus-free operation for quick inspections
  • Image capture function for documentation and reporting
  • Built-in LED flashlight for low-light environments
  • PC software support for image analysis
  • 1/4″ tripod mounting hole for stable inspections
  • Rugged IP65 protection and 2 m drop-proof design
  • Long-lasting rechargeable Li-ion battery
Technical Specifications
Thermal Imaging
  • IR Resolution: 160 × 120 pixels
  • Display: 2.8″ TFT LCD (320 × 240)
  • Field of View (FOV): 56° × 42°
  • Thermal Sensitivity (NETD): ≤ 50 mK
  • Spatial Resolution (IFOV): 6.1 mrad
  • Frame Rate: ≤ 9 Hz
  • Spectral Range: 8 – 14 µm
  • Focus: Focus-free
Temperature Measurement
  • Measurement Range: –10 °C to 400 °C
  • Accuracy: ±2 °C or ±2 % (whichever is greater)
  • Emissivity: Adjustable 0.01 – 1.00 (default 0.95)
Functions
  • Color Palettes: 5
    (White Hot, Red Hot, Ice Blue, Rainbow, Ironbow)
  • Image Mode: Thermal
  • High/Low Temperature Alarm: Icon & LED flashlight
  • PC Software Analysis: Supported
General Characteristics
  • Battery: Built-in Li-ion battery (3.6 V, 5000 mAh)
  • Battery Operation Time: ≥ 6 hours
  • USB Interface: Type-C
  • Protection Rating: IP65
  • Drop Resistance: 2 m
  • Storage: microSD card up to 32 GB
  • Image / Video Format: BMP
  • Certifications: CE, FCC, RoHS
  • Net Weight: 490 g
  • Product Size: 236 × 75.5 × 86 mm
Packing Details

Standard Accessories Included:

  • USB Type-C cable
  • Adapter
  • English user manual
  • Documents download & operation guide card
  • Standard individual packing
Typical Applications
  • Electrical panels and power distribution inspection
  • Industrial machinery and motor diagnostics
  • Preventive and predictive maintenance
  • HVAC system troubleshooting
  • Building inspection and insulation analysis
  • Mechanical and general industrial temperature measurement

The UNI-T UTi165A+ Heavy-Duty Thermal Imager Camera combines rugged durability, reliable thermal performance, and professional features, making it a dependable inspection tool for technicians and engineers working in demanding environments.
