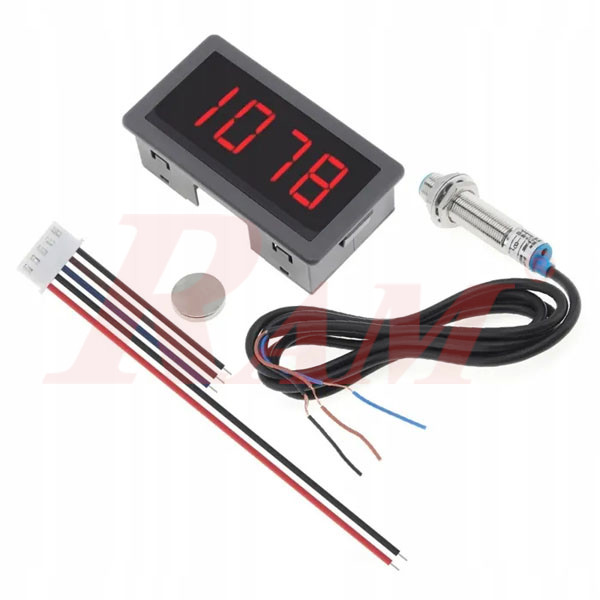

Product Name: CF5135C-Z Digital Tachometer Panel (with Hall Proximity Sensor)
Description:
A compact, non-contact digital tachometer panel designed to measure rotational speed (RPM) using a Hall-effect proximity sensor. It features a high-precision LED display ideal for mounting into equipment panels or enclosures.
Specifications:
- Measurement Range: 10 to 9,999 RPM
- Accuracy: ±0.1%
- Display Color: Blue (also available in Red or Green)
- Display Refresh Rate: > 3 times per second
- Operating Voltage: DC 8 V to 24 V
- Current Consumption: Approx. 40 mA
- Resolution: 0.1 RPM, with automatic range selection
- Display Type: 4-digit LED with clear numeric readout
- Response Time: High-speed refresh to capture real-time changes
- Dimensions (Panel): ~79 × 32 × 42 mm
- Panel Cut-Out (Installation Size): ~76 × 39 mm
- Weight: ~108 g (0.108 kg)
- Housing Material: Plastic enclosure
- Included Components: Digital panel meter, Hall-effect proximity sensor, mounting cable, magnet for sensor activation
Features:
- Non-Contact Measurement: Uses a Hall-effect sensor and magnet for safe and reliable RPM detection
- Versatile Display: Seamless RPM readings with high refresh rate and LED clarity
- Strong Design: Compact size and lightweight for easy integration
- Wide Voltage Tolerance: Supports a broad DC range suitable for various setups
Summary Table
Spec Category | Details |
|---|---|
| Measurement Range | 10–9,999 RPM |
| Accuracy | ±0.1% |
| Display Color | Blue (also Red or Green variants) |
| Voltage | DC 8–24 V |
| Current Draw | ~40 mA |
| Resolution | 0.1 RPM |
| Display Panel Size | 79 × 32 × 43 mm |
| Cut-Out Size | 76 × 39 mm |
| Weight | ~108 g |
| Sensor Type | Hall-effect proximity + magnet |
