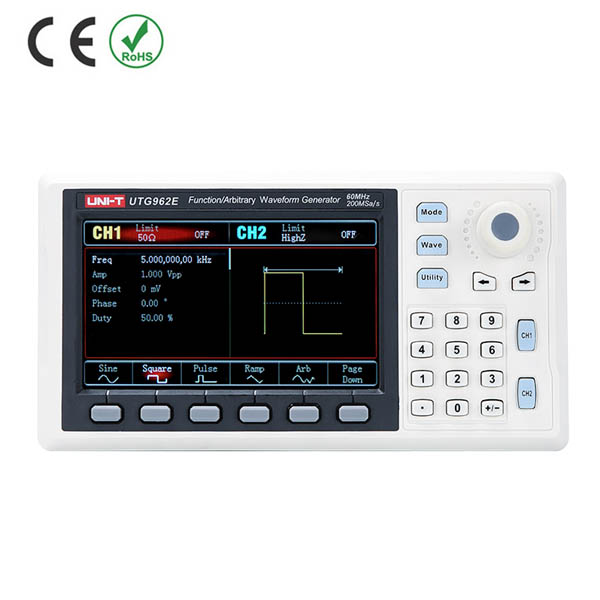

UNI-T UTG962E Function & Arbitrary Waveform Generator (60 MHz, Dual Channel)
The UNI-T UTG962E is a high-performance dual-channel function and arbitrary waveform generator designed for electronics laboratories, R&D, education, and maintenance applications.
Based on Direct Digital Synthesis (DDS) technology, it provides stable output, fine frequency resolution, and low distortion, making it suitable for analog, digital, and communication signal generation.
With 60 MHz sine output, 14-bit vertical resolution, advanced modulation functions, and a 4.3-inch color TFT display, the UTG962E offers excellent capability in a compact and cost-effective instrument.
Key Features
- 60 MHz sine waveform output
- Dual independent output channels
- DDS signal generation technology
- 200 MSa/s sampling rate
- 14-bit vertical resolution
- 1 µHz frequency resolution
- Multiple waveform types, including arbitrary waveforms
- AM, FM, PM, FSK modulation
- Linear & logarithmic frequency sweep
- Built-in 6-digit frequency counter
- 24 non-volatile arbitrary waveform memories
- 4.3-inch color TFT display
- Compact, lightweight design
Technical Specifications – UTG962E
General Output
- Channels: 2
- Sampling Rate: 200 MSa/s
- Vertical Resolution: 14-bit
- Frequency Resolution: 1 µHz
Waveform Types
- Sine
- Square
- Ramp
- Pulse
- Noise
- DC
- Arbitrary
Maximum Output Frequency
- Sine: 1 µHz – 60 MHz
- Square: 1 µHz – 30 MHz
- Pulse: 1 µHz – 30 MHz
- Ramp: 1 µHz – 400 kHz
- Noise bandwidth (–3 dB): 60 MHz
Signal Quality
-
Sine Harmonic Distortion (typ.):
- DC–5 MHz: < –60 dBc
- 5–60 MHz: < –50 dBc
- THD (typ.): < 0.2 % (DC–20 kHz, 1 Vpp)
- Phase Noise (typ.): –125 dBc/Hz @ 10 MHz, 10 kHz offset
Pulse / Square Characteristics
- Rise/Fall Time: < 8 ns (typ.)
- Duty Cycle: 0.01 % – 99.99 %
- Pulse Width: ≥ 40 ns
Arbitrary Waveform
- Frequency Range: 1 µHz – 10 MHz
- Waveform Length: 4 kpts
- Non-volatile Storage: 24 waveforms
Modulation Functions
- AM, FM, PM
- FSK
- Frequency Sweep: Linear / Logarithmic
- Burst / Gated Output
DC Offset
-
Range:
- ±5 V (50 Ω)
- ±10 V (High-Z)
Frequency Counter
- Input Range: 100 mHz – 100 MHz
- Resolution: 7 digits
- Accuracy: ±5 ppm
Display & Interface
- Display: 4.3-inch color TFT LCD
- Resolution: 480 × 272
- Front-panel keypad and rotary control
- Graphical waveform preview
General Specifications
- Output Impedance: 50 Ω
- Power Supply: DC 5 V / 2 A
- Power Consumption: < 10 W
- Cooling: Natural convection
- Operating Temperature: 10 °C to +40 °C
- Storage Temperature: –20 °C to +60 °C
- Dimensions: 172 × 90 × 68 mm
- Net Weight: 0.33 kg
- Certifications: CE
- Warranty: As per UNI-T policy
Standard Accessories
- Power adapter
- 1 × BNC cable (1 m)
- 1 × BNC-to-alligator clip cable
- User documentation
Typical Applications
- Electronics education and training labs
- Analog and digital circuit testing
- Signal simulation and debugging
- Communication experiments
- Maintenance and field service
- Entry-level and mid-range R&D benches
Summary
The UNI-T UTG962E delivers dual-channel 60 MHz signal generation, low distortion, and rich modulation capabilities in a compact instrument—making it an excellent choice for engineers, educators, and technicians who need reliable and versatile waveform generation.
